LVM-232W-A : 23” broadcast monitor.
The LVM-232W-A is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features. Utilizing the state-of-the-art IPS LCD panel and combined with The TVLogic's excellent video processing technology, LVM-232W-A provides outstanding viewing angle with accurate colors and rich professional features.
Display Spec.
 Size  23"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.2652mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  250cd/m2
 Contrast Ratio  1000:1
 Display Area  509(H) x 286(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI A/B Channel Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Carring Case,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount
LVM-232W-A : 23” broadcast monitor.
Options
  Carring Case,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount,
LVM-232W-A : 23” broadcast monitor.

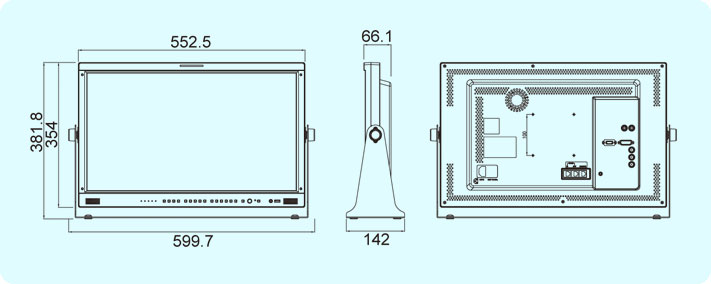

- Main Body : 552.5 x 354 x 66.1 (mm) / 21.75 x 13.93 x 2.6 (inch)
- With stand : 599.7 x 381.8 x 142 (mm) / 23.61 x 15.03 x 5.59 (inch)
- Weight : 6.9kg / 15.21lbs


LVM-232W-A : 23” broadcast monitor.
