LVM-170A : A multi-purpose 17” Full HD Monitor.
The LVM-170A is the Full HD version of TVLogic's 17inch montoring solutions. This unit features a true 16:9 aspect ratio LCD panel with 1920x1080 resolution and 10-bit video processing performance allowing for faithful color reproduction and video scaling performance.
Display Spec.
 Size  17.3"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.199mm
 Color Depth  16.7M
 Viewing Angle  170°(H) / 170°(V)
 Luminance  300cd/m2
 Contrast Ratio  800 : 1
 Display Area  381(H) x 214(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   AUTO Calibration   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
 Conversion   SDI-to-SDI,
Options
  Carring Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount  11.880Gbps
LVM-170A : A multi-purpose 17” Full HD Monitor.
Options
  Carring Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount,
LVM-170A : A multi-purpose 17” Full HD Monitor.

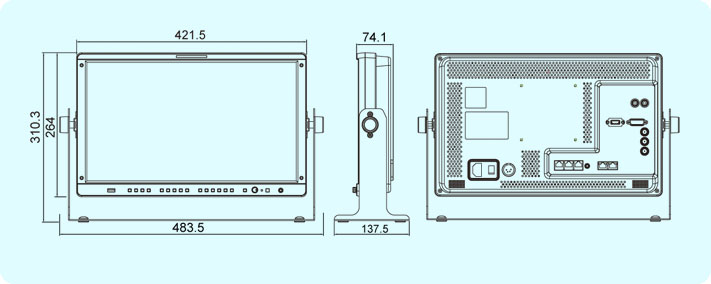

- Main Body : 421.5 x 264 x 74.1 (mm) / 16.59 x 10.39 x 2.91 (inch)
- With stand : 483.5 x 310.3 x 137.5 (mm) / 19.03 x 12.2 x 5.41 (inch)
- Weight : 4.2Kg / 9.25lb


LVM-170A : A multi-purpose 17” Full HD Monitor.
