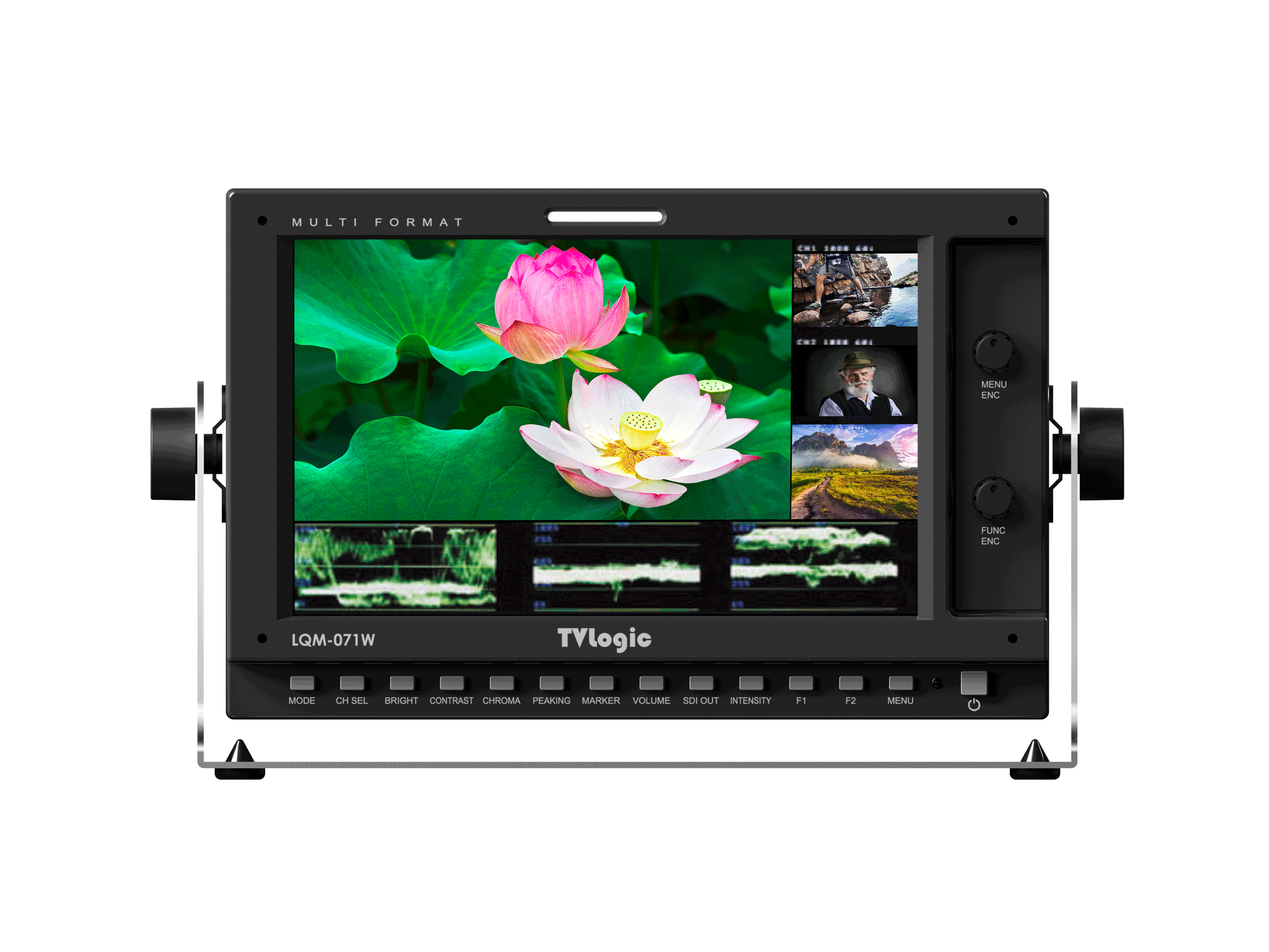

LQM-071W : Compact 7” Quad-Split Display With Integrated Waveform/Vector Scope Function

LQM-071W features 4 Autosensing Inputs (BNC) for Composite Video, SD-SDI and HD-SDI. Any combined video sources can be viewed on-screen simultaneously. The LQM-071W also features sophisticated Waveform/Vectorscope function and Audio Level Meters for each incoming SDI source. The LQM-071W is rack mountable as a single or double monitor configuration and is equipped with on selectable switched output.

LQM-071W

Choice:



Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

Display Spec.

 Size  7"
 Resolution  800 X 480 (15 : 9)
 Pixe Pitch  0.190mm
 Color Depth  16.7M
 Viewing Angle  140°(H) / 140°(V)
 Luminance  350cd/m2
 Contrast Ratio  700:1
 Display Area  152(H) x 91(V) mm
Input
 4 X BNC  HD SDI A/B/C/D Channel Input
Output
 1 X BNC  HD-SDI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  Audio Level Meter Display,  Blue Only,  Marker,  Time Code Display,  UMD,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Camera Mount Ball Head,  Carring Case,  External Acrylic Filter,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,

LQM-071W : Compact 7” Quad-Split Display With Integrated Waveform/Vector Scope Function

- Main Body : 203 x 131 x 60 (mm) / 8 x 5.16 x 2.36 (inch)
- With stand : 240 x 143 x 69 (mm) / 9.44 x 5.63 x 2.72 (inch)
- Weight : 1.35kg / 2.97lbs


  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download
