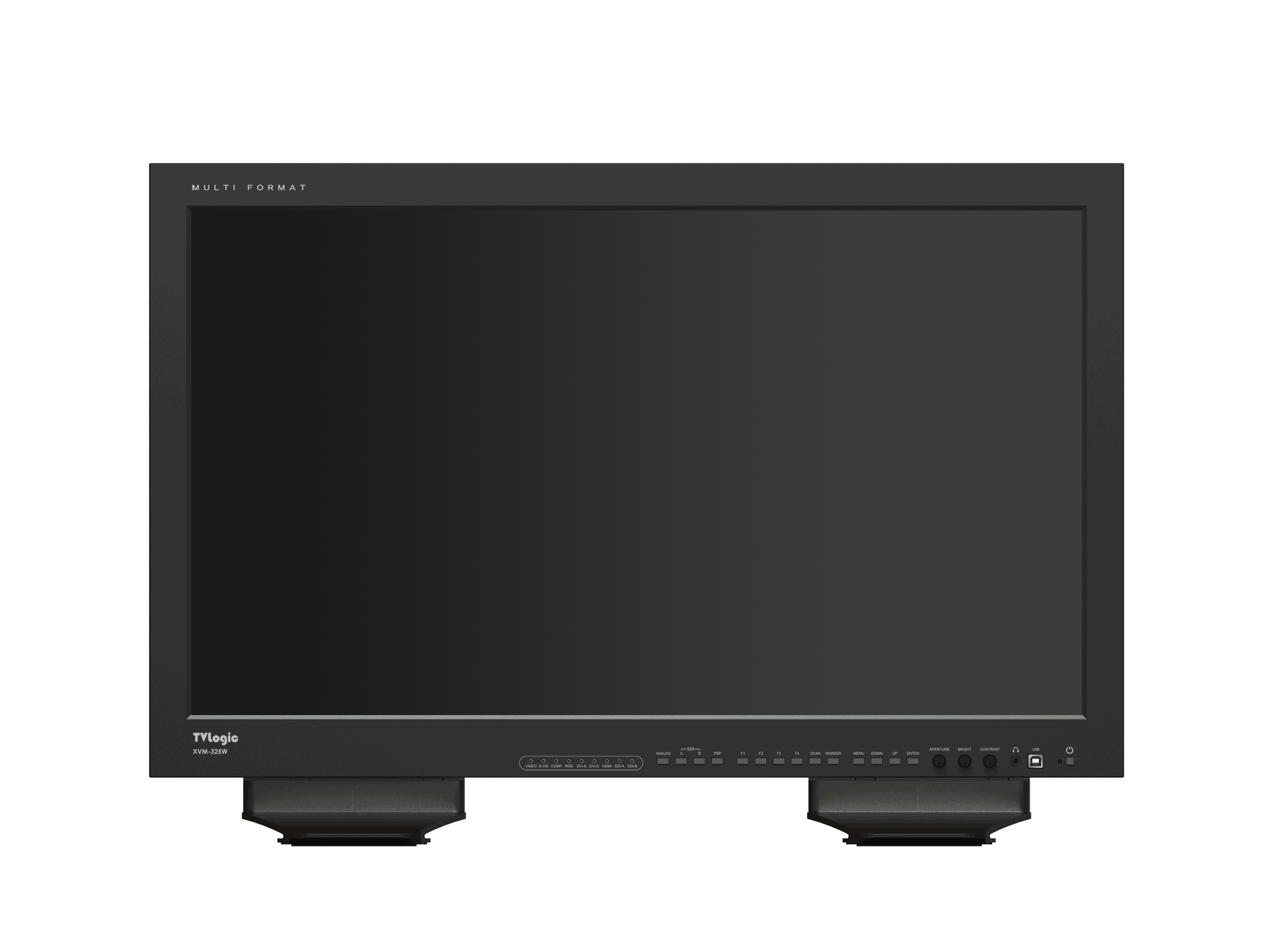

XVM-325W : 32” (1920 x 1080) 10-bit Color Critical LCD Monitor

The XVM-325W utilizes a EEFL backlight to reproduce the most accurate color possible on an LCD. The XVM-325W meets most of EBU Grade 1 specifications for color critical monitors while retaining all of the broadcast features found in the popular LVM Series. The XVM-325W features an integrated 3D LUT and supports import and export of popular color grading application LUT formats.

XVM-325W

XVM-325W

Choice:

Product Highlights
• 32” 1920x1080 Native HD Resolution

• Matte Finish Panel
• High-Purity Precision EEFL Backlight Array
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for proper
  color alignment
• Supports Multi-point Calibration for RGB and White
  uniformity correction
• Supports 3D LUT & Adjustable Gamma(1.0 to 3.0) and
  user-defined mode
• Supports 3rd party 3D LUT formats for import and
  export
• Firmware update by using Ethernet or USB
• GPI (RJ45)
• Timecode Display (VITC/LTC)
• Waveform/Vectorscope (Y/Cb/Cr, Wide type, Line
  waveform and Range Error)
• Marker / User Aspect
• Blue Only/Mono
• X3 Zoom(PBP)
• Key lock
• H/V Delay
• 120Hz LCD
• UMD (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708 (SDI), Line 21, ANC, DP-42,
  DP-47
• Monitor control by using RS422




3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec.

 Size  32"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.364mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  500cd/m2
 Contrast Ratio  1300:1
 Display Area  698(H) x 382(V) mm
Input
 1 X BNC  Analog Input (Composite)
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 3 X BNC  Analog Output (Component)
 2 X BNC  3G-SDI A/B Channel Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
 DVI Analog  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024
 DVI DP  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1600x1200/1920x1200/1920x1080
 DVI DH  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP),  Picture by picture
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import, Uniformity Correction
Other Functions
 Reference Sync input   EXT_Sync in
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support
Options
  Carrying Case,
Dimensions



- Main Body :
769.4 x 485.1 x 102.1 (mm) / 30.29 x 19.1 x 4.01 (inch)
- With stand : 769.4 x 539.3 x 255 (mm) / 30.29 x 21.23 x 10 (inch)
- Weight : 22.25kg / 49.05lbs
