TVX-D150 : HDBaseT Extender for DVI
- TVX-D150-Tx : Transmitter
- TVX-D150-Rx : Receiver

HDBaseT Extender is a device which transmits DVI image signals to the maximum 150m.

Max. Resolution 1920x1200@60Hz
Maximum Pixel Clock 165MHz
Max. Transmission / Reception Distance (CAT5e)
   - 1080P@60Hz, Deep Color : 150m
HDCP Compliant
EDID Pass through
LED Indicate
   - Power, Cable connection, HDCP Status
TVX-D150 : HDBaseT Extender for DVI

Item

Specification

Minimum

Maximum

Video Resolution 640x480@60Hz 1920x1200@60Hz
Pixel Clock 13.5 MHz 165 MHz
Transmission Distance(CAT5e) 1080P 150 meter 150 meter
Power Power (DC) 4.5 V 5.5 V
Current 0.8 A 1.2 A
Temperature / Humidity Working Temperature 0 °C 60 °C
Storage Temperature -30 °C 70 °C
Working Humidity 0 %RH 85 %RH
Storage Humidity 0 %RH 95 %RH
Connect Ethernet 8 Pin RJ-45 Female Connector
DVI 24 pin DVI-D Female Connector

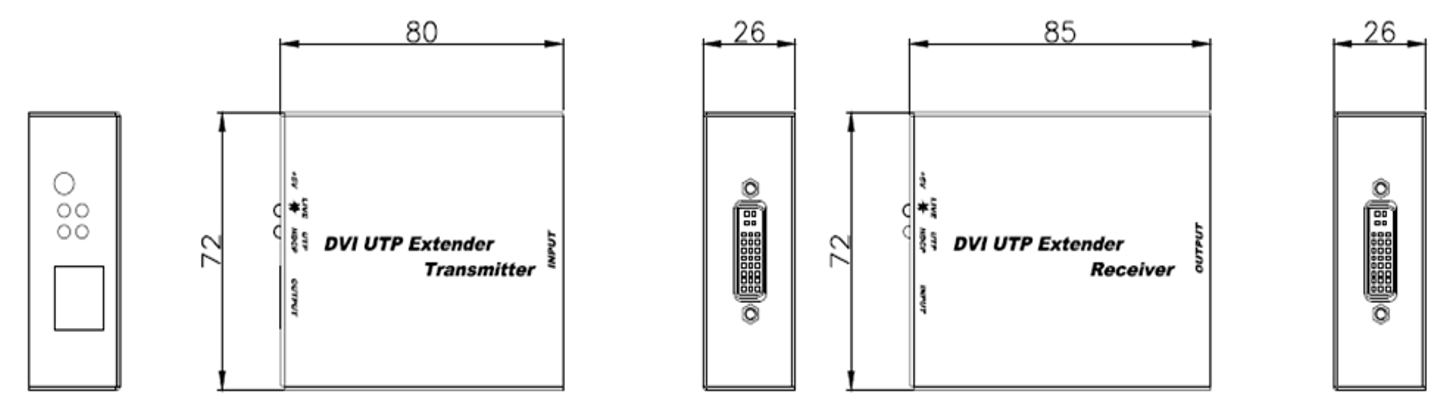

Dimensions W72xD80xD26
