TVX-D80

HDBaseT Extender for DVI

TVX-D80

Choice:

TVX-D80 : HDBaseT Extender for DVI

- TVX-D80-Tx : Transmitter
- TVX-D80-Rx : Receiver

HDBaseT Extender is a device which transmits DVI image signals to the maximum 100m.

Max. Resolution 4K, 3840x2160@30Hz
Max. Pixel Clock 300MHz
Max. Transmission / Reception Distance (CAT5e)
   - 1080P@60Hz, Deep Color : 100m
   - 4K, 3840x2160@30Hz : 80m
HDCP Support
EDID Pass through
LED Indicate
   - Power, Cable connection, HDCP Status

TVX-D80 : HDBaseT Extender for DVI

Item

Specification

Minimum

Maximum

Video Resolution 640x480@60Hz 3840x2160@30Hz
Pixel Clock 13.5 MHz 300 MHz
Transmission Distance(CAT5e) 1080P 80 meter 100 meter
4K 80 meter 80 meter
Power Power (DC) 4.5 V 5.5 V
Current 0.8 A 1.2 A
Temperature / Humidity Working Temperature 0 °C 60 °C
Storage Temperature -30 °C 70 °C
Working Humidity 0 %RH 85 %RH
Storage Humidity 0 %RH 95 %RH
Connect Ethernet 8 Pin RJ-45 Female Connector
DVI 24 pin DVI-D Female Connector

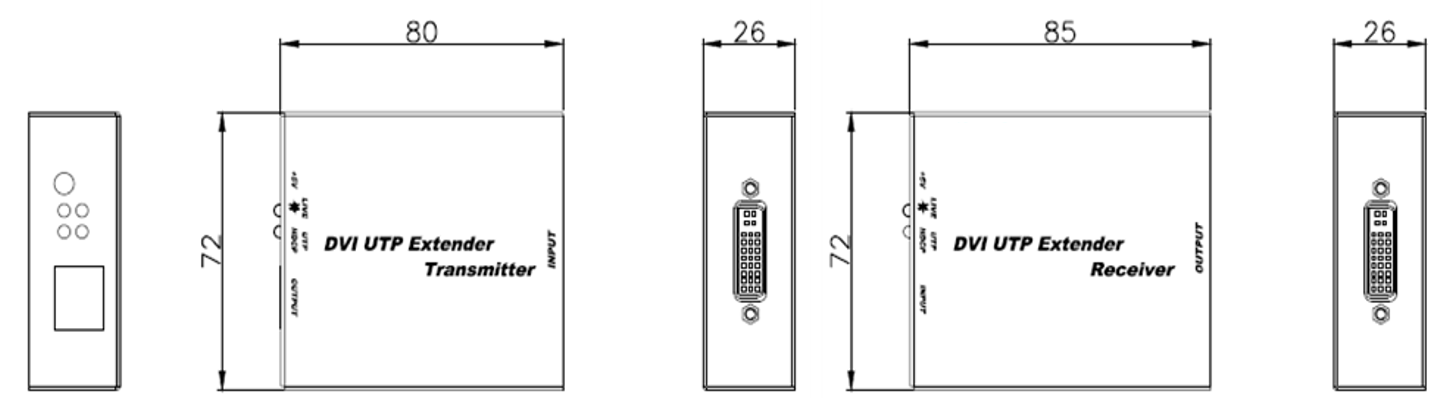

Dimensions W72xD80xD26

TVX-D80 : HDBaseT Extender for DVI
