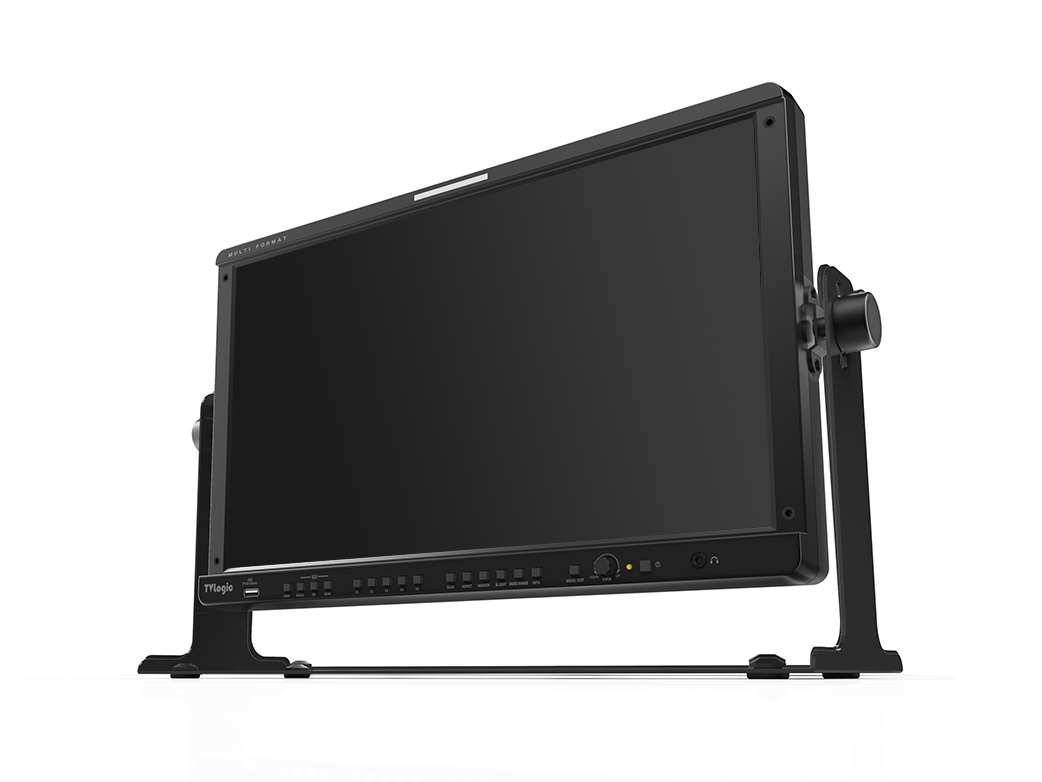

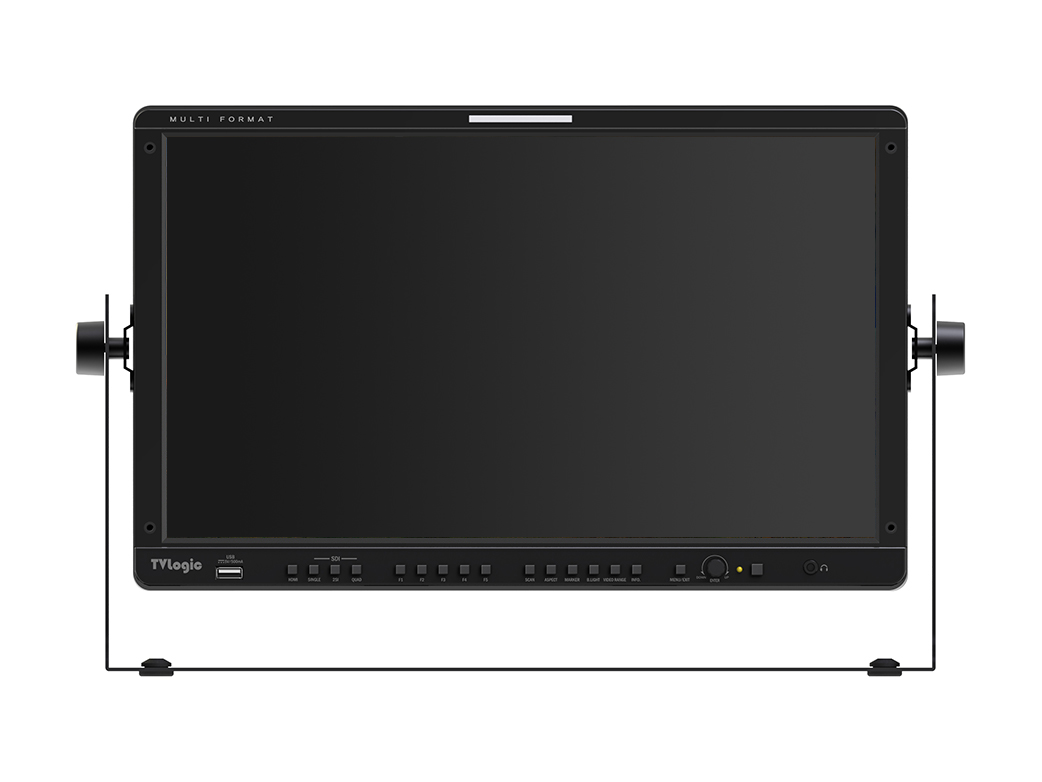

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

Closed caption

Closed caption.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Time Code Display

Displays the Timecode information on the screen.

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

User Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

Magnifies the input signal from 0% to 90%.

Display Spec

Size	16.5"
Resolution	1920 X 1080 (16 : 9)
Pixel Pitch	0.1905mm
Color Depth	1.07B
Viewing Angle	178°(H) / 178°(V)
Luminance	450cd/m2
Contrast Ratio	1500:1
Display Area	366(H) x 206(V) mm

Input

1 X BNC	Analog Input (Composite)
2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input
1 X DVI	DVI Input

Output

1 X BNC	Analog Output (Composite)
1 X BNC	3G-SDI Output

Input Signal

Analog	CVBS / S-Video / Component Video / RGB(D-TV)
3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	640x480/720x400/800x600/1024x768/1280x768/128 0x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50)
DVI Analog	640x480/720x400/800x600/1024x768/1280x1024/ 1366x768
DVI DP	640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50)
DVI DH	1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats

SMPTE 425M-A/B	1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions

,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.

Closed Caption

CC-608 ANC,  CC-608 LINE 21,  CC-708

Calibration

TVLogic Color Calibration Utility

Other Functions

REMOTE	TVLogic’s specification
USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options

Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount

Dimensions

Basic Accessory

Optional Accessory

[Release Notes]
Date : 19.03.25
LVM-171A [GPU Firmware Update : V0006 -> V0007]
1. Improved the thru-out issue.

Date : 18.07.31
LVM-171A [GPU Firmware Update : V0005 -> V0006]
1. Added a feature to set [Time Code] location.

Date : 17.05.12
LVM-171A [GPU Firmware Update : V0004 -> V0005]
1. Fixed a bug which causes signal lost

Date : 17.04.26
LVM-171A [GPU Firmware Update : V0004 -> V0005]
1. Can select HDMI by Function Key

Date : 17.03.02
LVM-171A [GPU Firmware Update : V0002 -> V0003]
1. Can select SDI-A, SDI-B by Function Key

Date : 16.07.29 LVM-171A [FPGA Firmware Update : V0001 -> V0002]
1. Debugged noise on 3G-SDI
