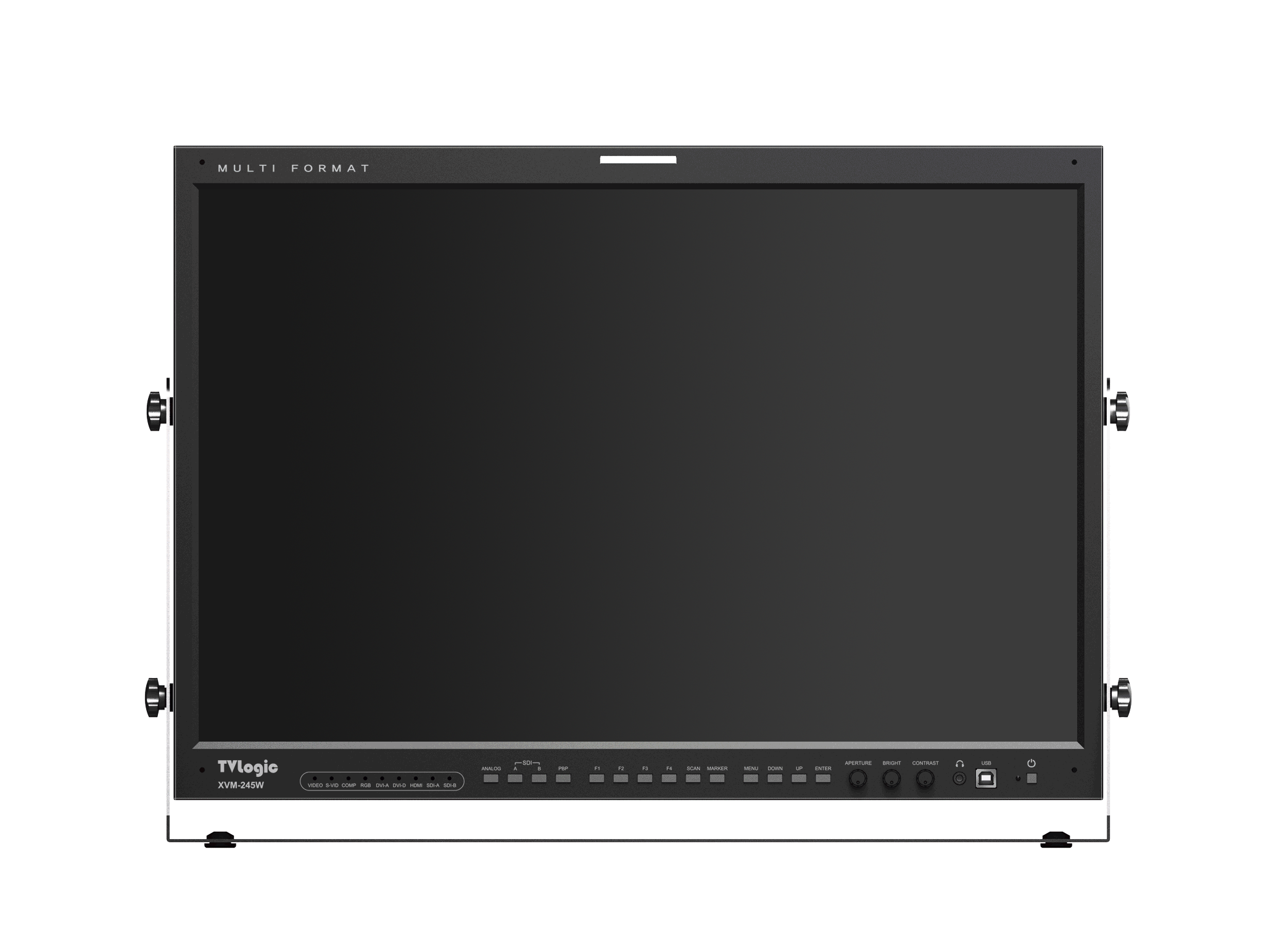

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Closed caption

Closed caption.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Time Code Display

Displays the Timecode information on the screen.

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

User Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

Magnifies the input signal from 0% to 90%.

Display Spec

Size	24"
Resolution	1920 X 1200 (16 : 10)
Pixel Pitch	0.270mm
Color Depth	1.07B
Viewing Angle	178°(H) / 178°(V)
Luminance	250cd/m2
Contrast Ratio	1000:1
Display Area	518.4(H) x 324.0(V) mm

Input

1 X BNC	Analog Input (Composite)
3 X BNC	Analog Input (Component)
2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input
1 X DVI	DVI Input

Output

1 X BNC	Analog Output (Composite)
3 X BNC	Analog Output (Component)
2 X BNC	3G-SDI A/B Channel Output

Input Signal

Analog
3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA/IBM Modes
DVI Analog	VESA / IBM Modes

SDI Input Signal Formats

SMPTE 425M-A/B	1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE 372	Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP),  Picture by picture

Closed Caption

CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47

Calibration

TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import, Uniformity Correction

Other Functions

Reference Sync input	EXT_Sync in
REMOTE	TVLogic’s specification
USB	Firmware update by USB cable
Ethernet	Ethernet Control support

Options

Carrying Case,  Rack Mount Kit(Single),

Dimensions

- Main Body : 552.5 x 389 x 95 (mm) / 21.75 x 15.31 x 3.74 (inch)
- With stand : 584 x 416.8 x 150 (mm) / 23 x 16.4 x 5.9 (inch)
- Weight : 11.05kg / 24.36lbs
