Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

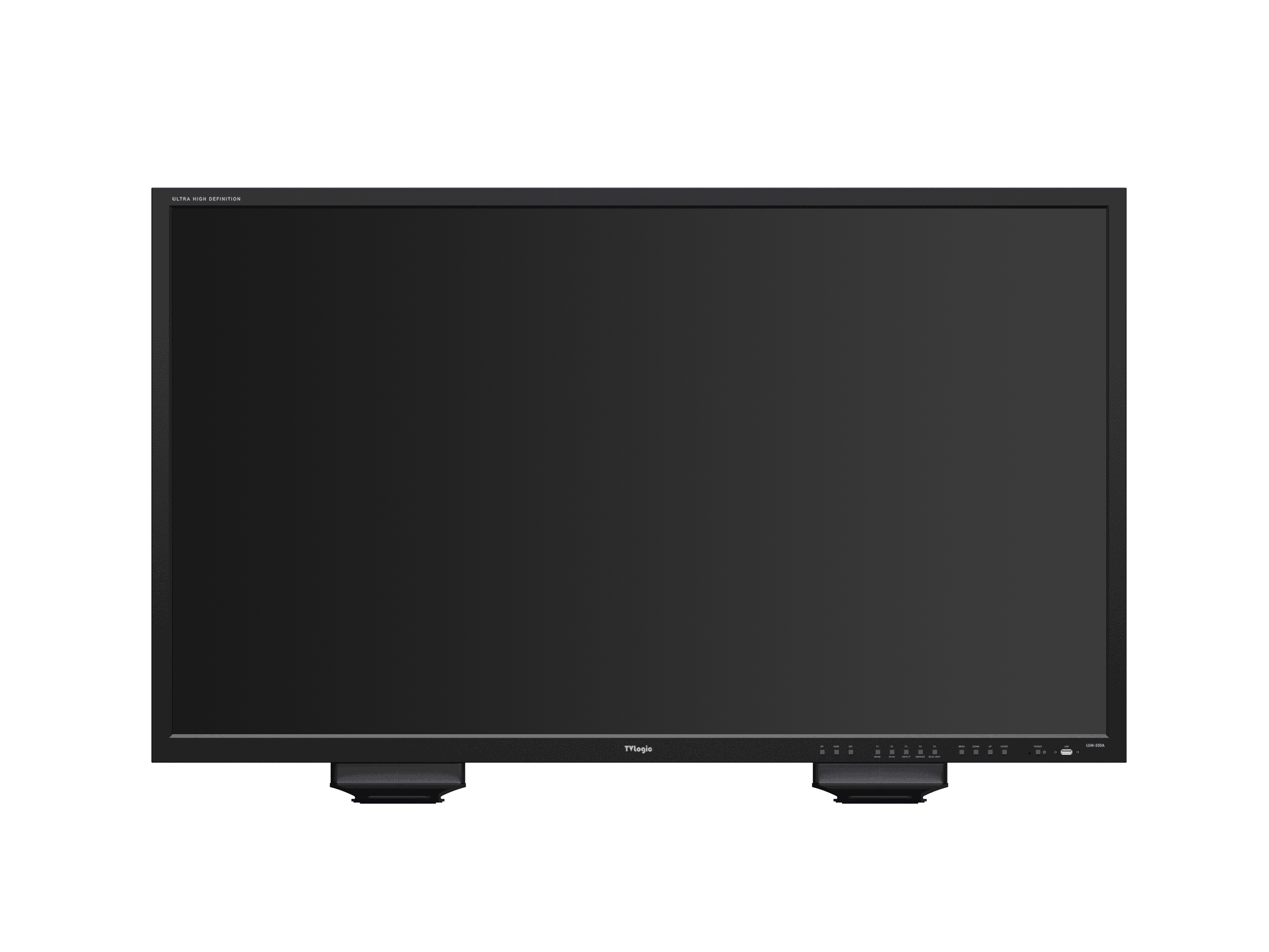

Display Spec

Size	55"
Resolution	3840 X 2160 (16 : 9)
Pixel Pitch	0.315mm
Color Depth	1.07B
Viewing Angle	178°(H) / 178°(V)
Luminance	450cd/m2
Contrast Ratio	1400:1
Display Area	1244(H) x 700(V) mm

Input

4 X BNC	3G-SDI A/B/C/D Channel Input
4 X HDMI	HDMI A/B/C/D Channel Input, HDMI1.4 A/B

Output

4 X BNC	3G-SDI A/B/C/D Channel Output
4 X HDMI	HDMI A/B/C/D Channel Output

Input Signal SDI Input Signal Formats Audio

Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	-

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono

Closed Caption Calibration

TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma

Other Functions

REMOTE	TVLogic’s specification
USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options

Carrying Case,

Dimensions

- Main Body : 1266 x 747 x 106.3 (mm) / 49.84 x 29.4 x 4.18 (inch)
- With stand : 1266 x 800.2 x 255 (mm) / 49.84 x 31.5 x 10 (inch)
- Weight : 45kg / 99.2lb
