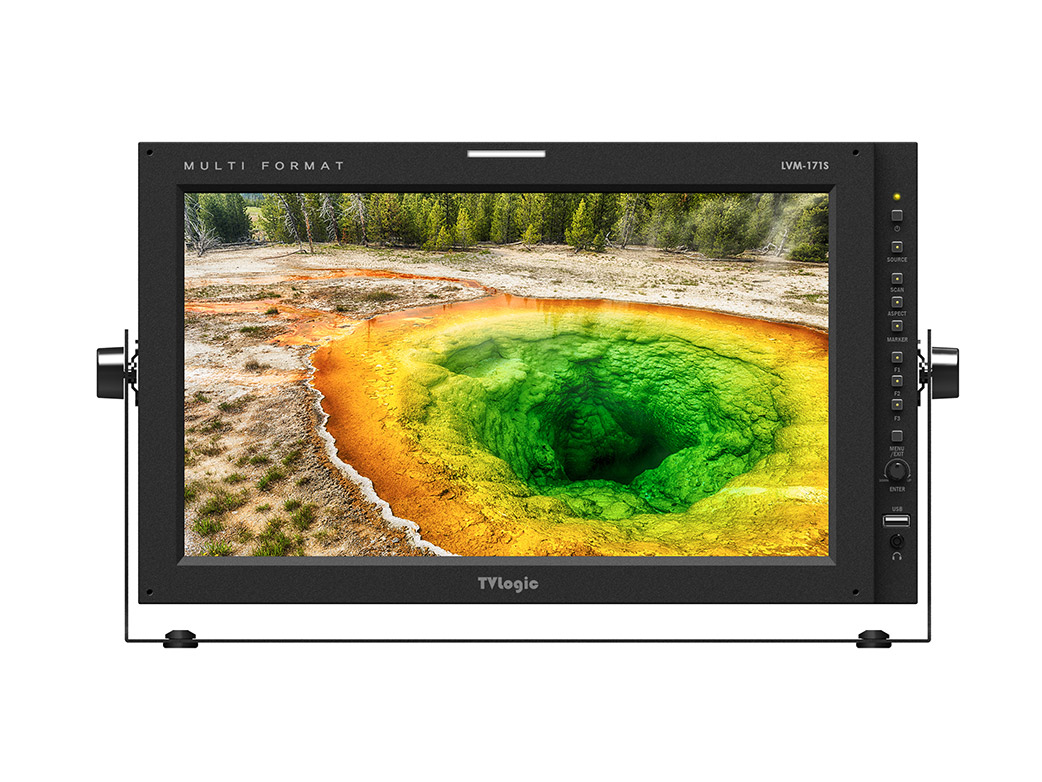

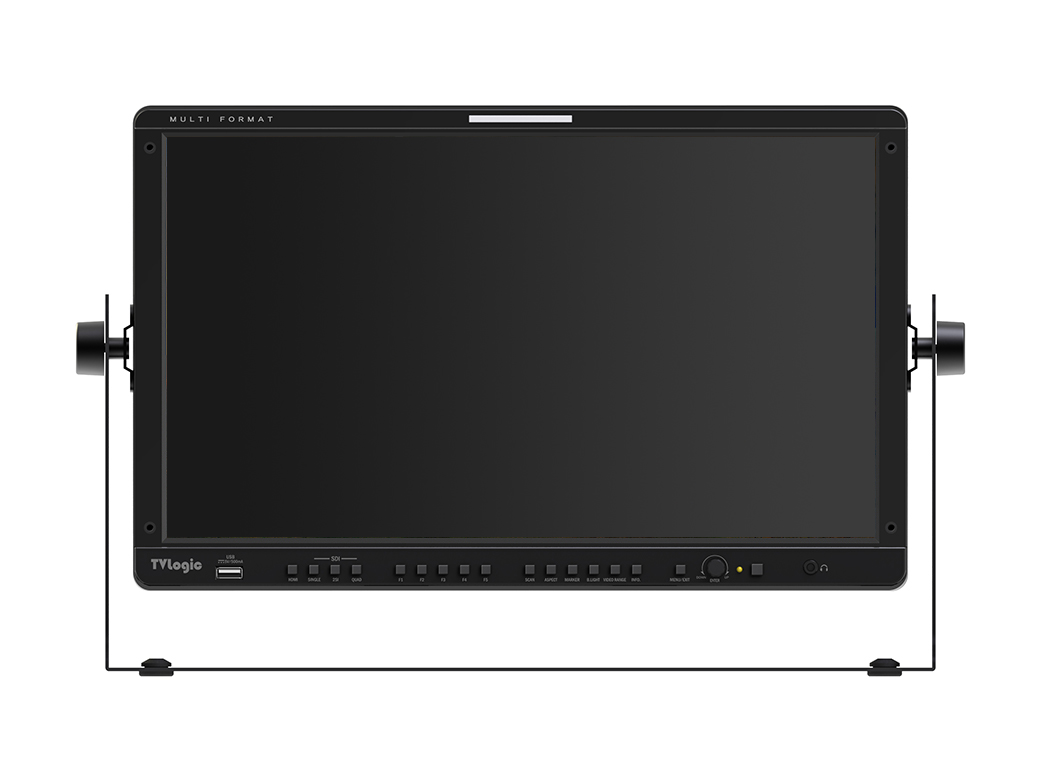

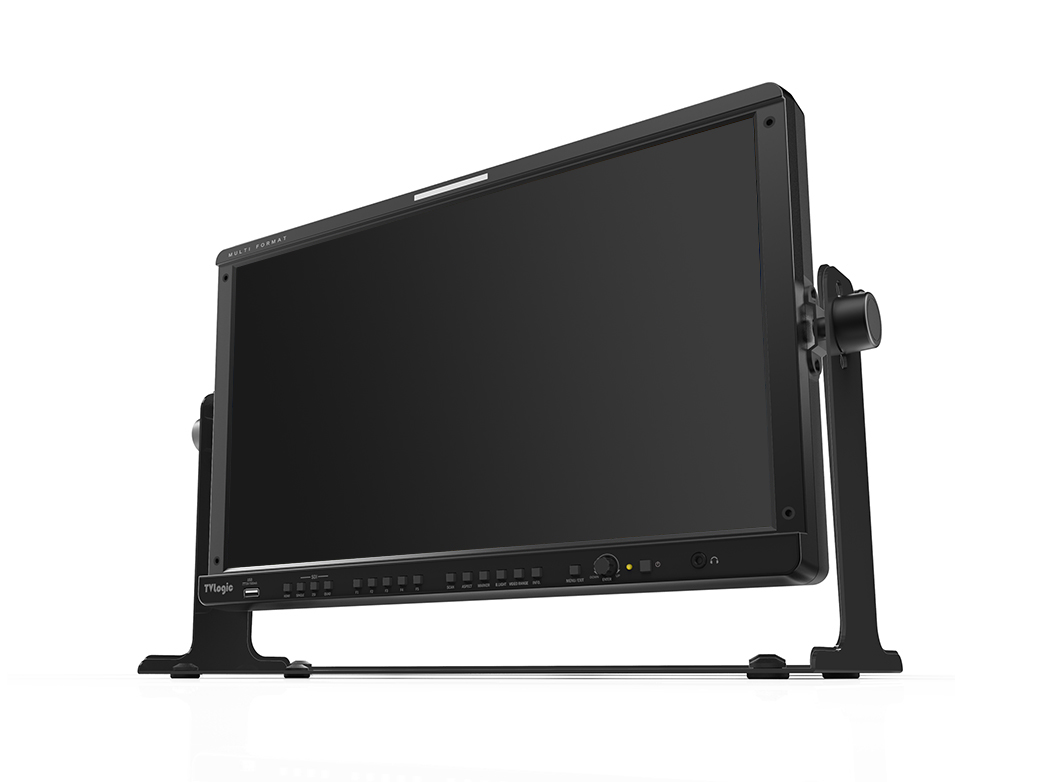

LVM-171S : 16.5 FHD High-End LCD Monitor
The LVM-171S is our top QC-Grade 17” model with a 16.5 inch IPS LCD panel with 1920x1080 native resolution, wide-gamut reproduction (up to DCI-P3), enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.![LVM-171S](/Monitors/UpImg/02_LVM-171S_1.jpg)
HDR Emulation
![HDR Emulation](/new/img/FPGA/HDR Emulation_1.png)
![HDR Emulation](/new/img/FPGA/HDR Emulation_2.png)
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
1:1 Pixel Mapping Modes for SD/HD
![1:1 Pixel Mapping Modes for SD/HD](/new/img/FPGA/pixel_mapping-01.png)
![1:1 Pixel Mapping Modes for SD/HD](/new/img/FPGA/pixel_mapping-02.png)
3G-SDI Level A/B
Anamorphic Desqueeze
![Anamorphic Desqueeze](/new/img/FPGA/Anamorphic Desqueeze1.png)
![Anamorphic Desqueeze](/new/img/FPGA/Anamorphic Desqueeze2.png)
![Anamorphic Desqueeze](/new/img/FPGA/Anamorphic Desqueeze3.png)
Audio Level Meter Display
![Audio Level Meter Display](/new/img/FPGA/Audio Level Meter Display.png)
Blue Only / Mono
![blue only](/new/img/FPGA/blue only.png)
Custom 3D LUT Import
![Custom 3D LUT Import](/new/img/FPGA/Custom 3D LUT.png)
Closed caption
![Closed caption](/new/img/FPGA/closed caption.png)
Focus Assist
![Focus Assist](/new/img/FPGA/Focus Assist1.png)
![Focus Assist](/new/img/FPGA/Focus Assist2.png)
H/V Delay
![H/V Delay](/new/img/FPGA/HV Delay.png)
Key Lock
![Key Lock](/new/img/FPGA/Key Lock.png)
Marker
![Marker](/new/img/FPGA/marker.png)

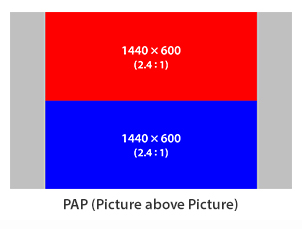

PAP(Picture above Picture)
![PAP(Picture above Picture)](/new/img/FPGA/PAP1.png)
![PAP(Picture above Picture)](/new/img/FPGA/PAP2.png)

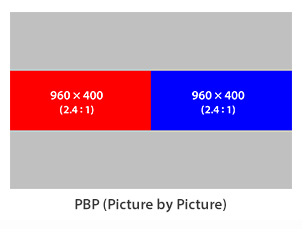

PBP(Picture by Picture)
![PBP(Picture by Picture)](/new/img/FPGA/PBP1.png)
![PBP(Picture by Picture)](/new/img/FPGA/PBP2.png)
![PBP(Picture by Picture)](/new/img/FPGA/PBP3.png)
Range Error
![Range Error](/new/img/FPGA/Range Error1.png)
![Range Error](/new/img/FPGA/Range Error2.png)
Time Code Display
![Time Code Display](/new/img/FPGA/Time code display.png)
UMD
![UMD](/new/img/FPGA/UMD.png)
User Aspect
![User Aspect](/new/img/FPGA/User Aspect1.png)
![User Aspect](/new/img/FPGA/User Aspect2.png)
![User Aspect](/new/img/FPGA/User Aspect3.png)
Various Scan Modes
![Various Scan Modes](/new/img/FPGA/Various Scan1.png)
![Various Scan Modes](/new/img/FPGA/Various Scan2.png)
![Various Scan Modes](/new/img/FPGA/Various Scan3.png)
Waveform/Vector Scope
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
![Waveform/Vector](/new/img/FPGA/waveform1.png)
![Waveform/Vector](/new/img/FPGA/waveform2.png)
Size | 16.5" |
Resolution | 1920 X 1080 (16:9) |
Pixel Pitch | 0.1905mm |
Color Depth | 1.07B |
Viewing Angle | 178°(H) / 178°(V) |
Luminance | 450cd/m2 |
Contrast Ratio | 1500:1 |
Display Area | 366(H) x 206(V) mm |
3 X BNC | Analog Input (Component) |
2 X BNC | 3G-SDI A/B Channel Input |
1 X HDMI | HDMI Input |
1 X DVI | DVI Input |
3 X BNC | Analog(Loop Through Out) |
2 X BNC | SDI A/B Channel Output (Loop Through Out) |
External Output Port |
Analog | CVBS / S-Video / Component / RGB(D-TV) |
3G SDI | 2.970Gbps |
HD SDI | 1.485Gbps |
SD SDI | 270Mbps |
HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768 |
DVI Analog | 640x480/720x400/800x600/1024x768/1366x768 |
DVI DP | 640x480/720x400/800x600/1024x768/1366x768 |
SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
SMPTE 372 | Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF) |
SMPTE 296 | 720p (60/59.94/50) |
SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
SMPTE 260 | 1035i (60/59.94) |
SMPTE 125 | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP) |
CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR |
TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
REMOTE | GPI (RJ45) |
REMOTE | TVLogic’s specification |
USB | Firmware update by USB memory stick |
Ethernet | Ethernet Control support |
Carrying Case, External Acrylic Filter, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), Sun Hood, V-Mount |
![LVM-171S](http://www.tvlogic.tv/Monitors/UpImg/LVM-171S_d.png)
Basic Accessory
![AC Power Cord](/Monitors/ACC_IMG/AC Power Cord_acc.jpg)
![Stand-17](/Monitors/ACC_IMG/Stand-17_acc.jpg)
![USB Cover](/Monitors/ACC_IMG/USB Cover_acc.jpg)
Optional Accessory
![RMK-165X](/Monitors/ACC_IMG/RMK-165X_acc.jpg)
![OPT-AND-165](/Monitors/ACC_IMG/OPT-AND-165_acc.jpg)
![OPT-AF-165](/Monitors/ACC_IMG/OPT-AF-165_acc.jpg)
![V-Mount-17C](/Monitors/ACC_IMG/V-Mount-17C_acc.jpg)
![V-Mount-17](/Monitors/ACC_IMG/V-Mount-17_acc.jpg)
![AB-Mount-17(AP)G-Mount-17(EMEA)](/Monitors/ACC_IMG/AB-Mount-17(AP)G-Mount-17(EMEA)_acc.jpg)
![Hood-175W(AP)Hood-175(EMEA)](/Monitors/ACC_IMG/Hood-175W(AP)Hood-175(EMEA)_acc.jpg)
![CC-175](/Monitors/ACC_IMG/CC-175_acc.jpg)
[Release Notes]
Date: 20.01.07
[LVM-171S, 241S [ FPGA V01 -> 02 , Application Revision Update : V26 -> V30]
1. Supporting Euro Letter CC
2. Adding New feature: Key Lock
3. Adding New feature: OSD DISPLAY (OSD timer)
4. Adding New feature: Aspect mode
(ANAMORPHIC 1.3X, ANAMORPHIC 1.5X, ANAMORPHIC 2.0X)
5. Adding New feature: PBP Top Bottom mode (PBP4)
Date: 19.07.11
[LVM-171S, 241S [Application Revision Update : V21 -> V26]
1. Adding New feature: CC 608 (Anc/Line21)
2. Adding New feature: Custom 3D LUT function
3. Adding New feature: User Aspect function
4. Adding New feature: DCI 6500K (change to Gamma 2.2, 100nit, 6500K when selecting DCI 6500K,)
5. Adding New feature: Aspect mode (1.3:1, 1.65:1, 1.8:1, 2:1)
6. Adding New feature: Fucntion Key function (Custom LUT)
