Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Time Code Display
Displays the Timecode information on the screen.
Adjusts the Width /Height display ratio.
Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

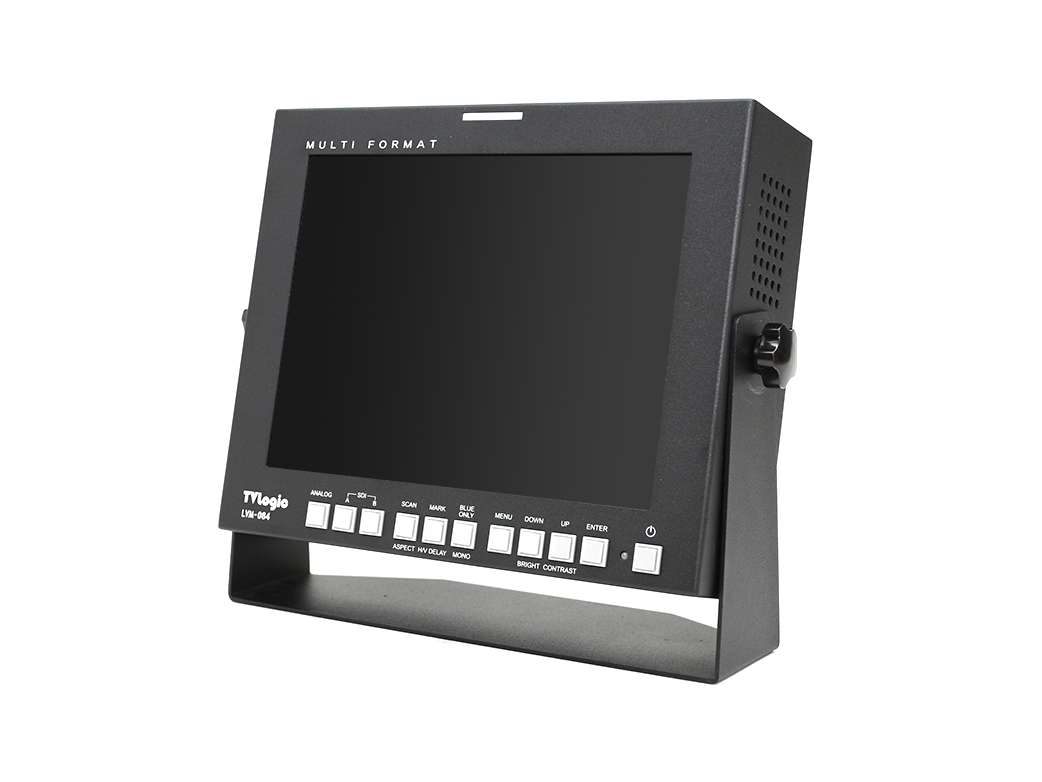

LVM-084 : High Quality 8.4” LCD For 4:3 Applications
215 x 177 x 59 (mm) / 8.46 x 6.97 x 2.32 (inch)
245.8 x 202.55 x 80 (mm) / 9.67 x 7.97 x 3.15 (inch)
