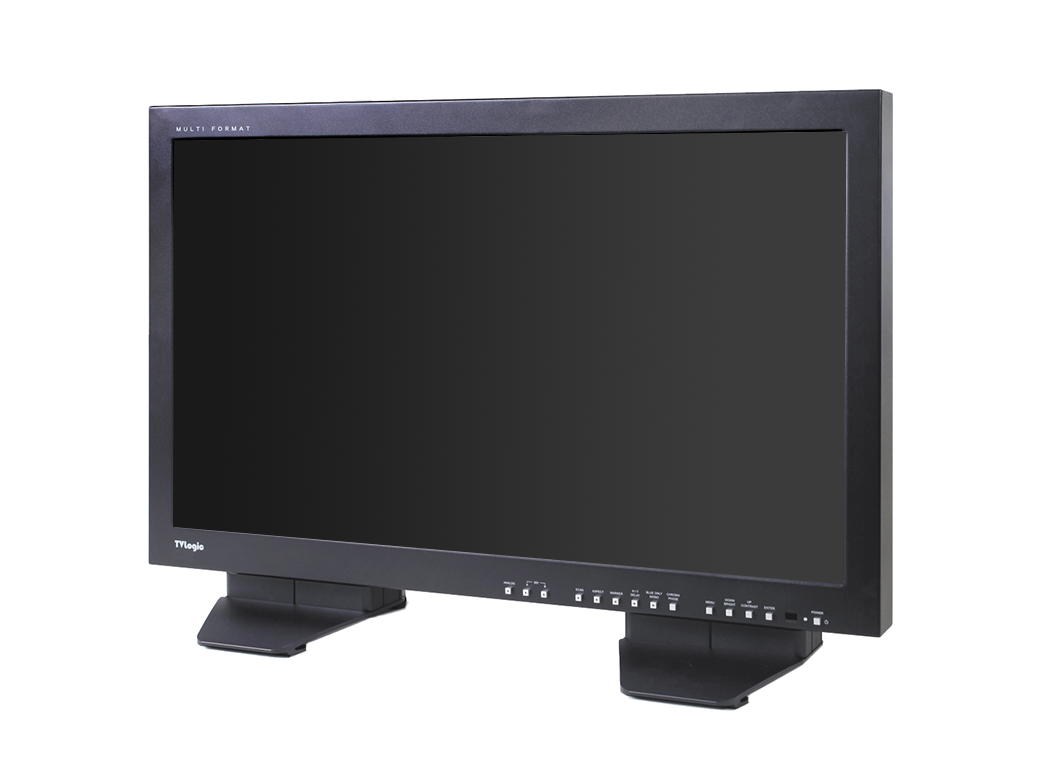

LVM-323W-3G : 32” 1920 x 1080 Native HD LCD Display

The LVM-323W-3G utilizes a 32” 1920 x 1080 Native Resolution LCD panel. This model includes a wide range of input with 3G/Dual-Link and TVLogic’s industry-leading scaling technology.

LVM-323W-3G

Choice:

Product Highlights
• 32” 1920 x 1080 Native HD Resolution

• 10bit Dithering Support
• Matte Finish Panel
• 1:1 Pixel Mapping modes for SD/HD
• Supports TVLogic Color Calibration Utility for proper
color alignment
• Firmware update using Ethernet or USB
• GPI (RJ45)
• Waveform/Vectorscope (Y/Cb/Cr, RGB, Wide Type, Line
Waveform)
• Range Error
• Marker
• User Aspect
• Blue Only/Mono
• Key lock
• Selectable 3 function keys
• H/V Delay
• Timecode Display
• UMD support (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708, OP-42, OP-47, Line 21,
ANC
• Monitor control using RS422/ Ethernet
• IR Remote


Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Locks the knob or key control.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Max Brightness On/Off

Max Brightness On/OffMax Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

PBP(Picture by Picture)

PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.

Display Spec.

 Size  32"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.364mm
 Color Depth  1.06B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  500cd/m2
 Contrast Ratio  1300:1
 Display Area  698(H) x 382(V) mm
Input
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 3 X BNC  Analog Output (Component)
 2 X BNC  3G-SDI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support
 Conversion
Options
  Carring Case,

LVM-323W-3G : 32” 1920 x 1080 Native HD LCD Display


769.4 x 481.1 x 102.1 (mm) / 30.29 x 18.94 x 4.01 (inch)

769.4 x 539.3 x 255 (mm) / 30.29 x 21.23 x 10.03 (inch)

21.45kg / 47.3lbs



  Product Brochure (1 Page)    -
  Manual   Download
  Leaflet    -
  Total Brochure   Download
