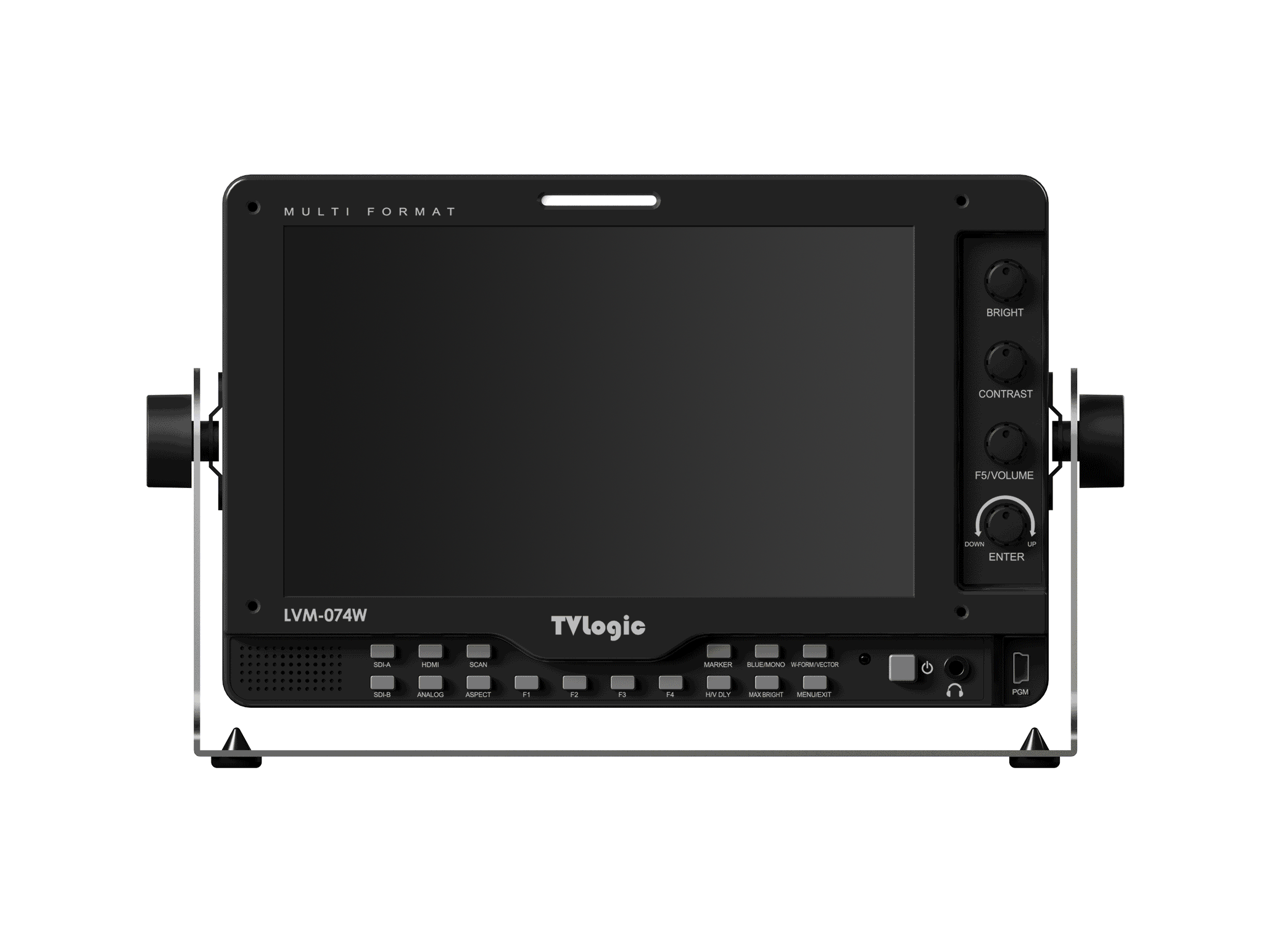

LVM-074W : The Most Comprehensive 7” HD LCD Display Available

The LVM-074W features a high-resolution (1024x600) 7” LED backlit LCD panel housed in lightweight (600 grams) yet durable magnesium alloy case.

An ideal monitor for the latest compact cinema cameras, the LVM-074W offers a wide range of professional features including: Waveform/Vectorscope, built-in HDMI to HD-SDI conversion output, Horizontal and Vertical Image Flip, Focus Assist, Audio Level Meter and more.

A feature unique to the LVM-074W is TVLogic’s new user selectable Temperature Adaptive Color function that measures LCD panel temperature and automatically compensate the white balance drift caused by a cold or hot weather.

LVM-074W

Choice:

Product Highlight
•  7” 1024 x 600 (16:9) Resolution

•  White LED Backlight
•  Matte Finish Panel
•  Hard-Coated Acrylic Filter
•  Max Brightness On / Off
•  Supports TVLogic Color Calibration Utility for proper    color alignment
•  Waveform/Vectorscope
   (Y/Cb/Cr, Wide Type, Line Waveform, Full Size)
•  GPI (RJ45)
•  Timecode Display
•  Range Error
•  Marker
•  User Aspect
•  Blue Only/Mono
•  H/V Delay
•  Focus Assist
•  H/V Flip
•  Luma(Y') Zone Check
•  Zoom
•  3G-SDI Level A/B
•  UMD support (ANC, Manual, Dynamic & hUser)
•  Closed Caption: CEA-608/708 (SDI)
•  Monitor control using RS422
•  Magnesium Housing, Light Weight
•  External Tally (Option)
•  Temperature Adaptive Color
•  HDMI-to-SDI conversion output
•  HDMI-to-HDMI Active Loop Through
•  SDI-to-SDI Active Loop Through






Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Max Brightness On/Off

Max Brightness On/OffMax Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Display Spec.

 Size  7"
 Resolution  1024 X 600 (16 : 9)
 Pixe Pitch  0.150mm
 Color Depth  16.7M
 Viewing Angle  170°(H) / 170°(V)
 Luminance  400cd/m2
 Contrast Ratio  800:1
 Display Area  154(H) x 90(V) mm
Input
 1 X RCA  Analog Input (Composite)
 3 X RCA  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support
 Conversion   HDMI-to-HDMI,  HDMI-to-SDI,  SDI-to-SDI,
Options
  Camera Mount Ball Head,  Carring Case,  D-Tap Cable,  External Tally,  External Acrylic Filter,  Gold Mount,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,  V-Mount

LVM-074W : The Most Comprehensive 7” HD LCD Display Available



- Main Body :
203 x 131 x 34.6 (mm) / 8 x 5.16 x 1.36 (inch)
- With stand : 240 x 143 x 69 (mm) / 9.44 x 5.63 x 2.72 (inch)
- Weight : 0.94kg / 2.07lbs
