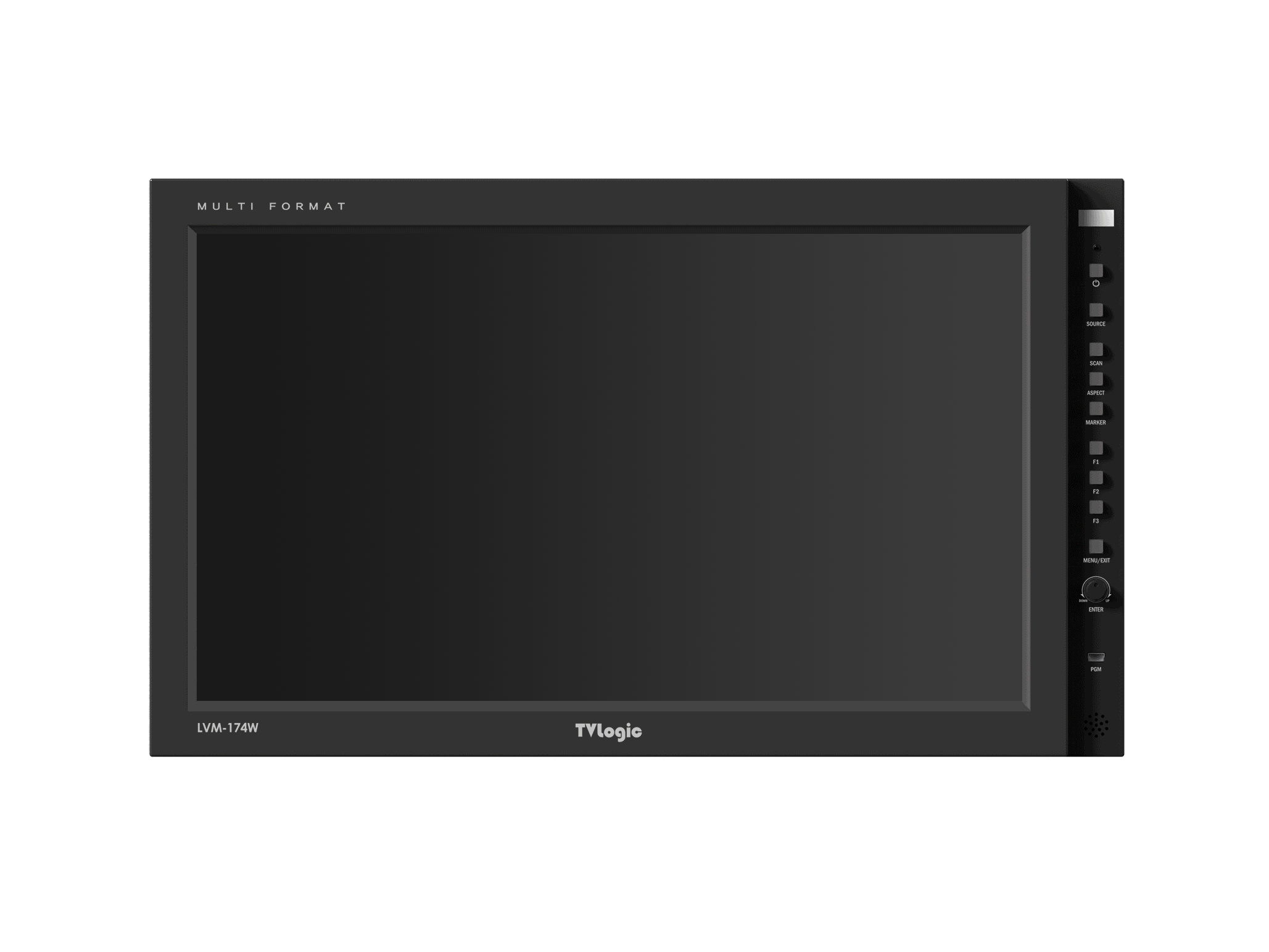

LVM-174W : 17” Rack-mount Monitor perfect for Video Walls

The LVM-174W is a whole new designed 17" monitor with a wide variety of mounting and configuration options. With perfect size and design for rack mounting with 6RU height, The LVM-174W provides most comprehensive usability for Control Rooms and OB Vans. The LVM-174W provides high quality pictures and professional eatures, and even convenient operation when combined with remote control box RMU-200.
LVM-174W

LVM-174W

Choice:

Product Highlights
• 17” 1366x768 (16:9) Resolution

• Matte Finish Panel
• Supports TVLogic Color Calibration Utility for proper
color alignment
• GPI (RJ45)
• Waveform/Vectorscope
• Range Error
• Marker
• User Aspect
• Blue Only / Mono
• Luma(Y') Zone Check
• 3G-SDI Level A/B
• Key lock
• H/V Delay
• Timecode Display
• UMD support (ANC, Manual, Dynamic & User)
• Closed Caption : CEA- 608/708 (SDI), Line 21, ANC, OP-42
• Audio Disembedder & Speakers
• Embedded Audio Level meter (16ch)
• Monitor control by using RS422 / Ethernet
• Focus Assist
• Auto Calibration
• Firmware update by using USB Memory Stick
• Zoom
• Selectable 3 Function Key

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec.

 Size  17"
 Resolution  1366 X 768 (16 : 9)
 Pixel Pitch  0.273mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  900:1
 Display Area  373(H) x 210(V) mm
Input
 1 X BNC  Analog Input (Composite)
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 3 X BNC  Analog Output (Component)
 1 X BNC  3G-SDI A/B Channel Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 DVI Analog  640x480/720x400 /800x600/1024x768/1280x768/ 1280x1024/1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024
 DVI DH  1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   AUTO Calibration   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  ND Acrylic Filter,  Rack Mount Kit(Single),
Dimensions



- Main Body :
445 x 264 x 86.9 (mm) / 17.52 x 10.39 x 3.42 (inch)
- Weight : 6.4kg / 14.08lbs
