XVM-175W : 17” Full HD Reference Monitor for Color-Critical Work Environments

The XVM-175W is a 17” version of the XVM series that reproduce highly accurate colors required by the most demanding applications. TVLogic’s advanced video processing engine and unique color calibration technology, combined with 10bit IPS LCD panel with RGB-LED backlight, makes the state-of-the-art reference monitor for professionals. All the professional features are included : Focus Assist, Markers, Waveform & Vectorscope, Timecode display, UMD, Closed Caption, Fast mode, various color standards with 3D LUT, Backlight and Gamma control, Import of 3rd party 3D LUTs and etc.

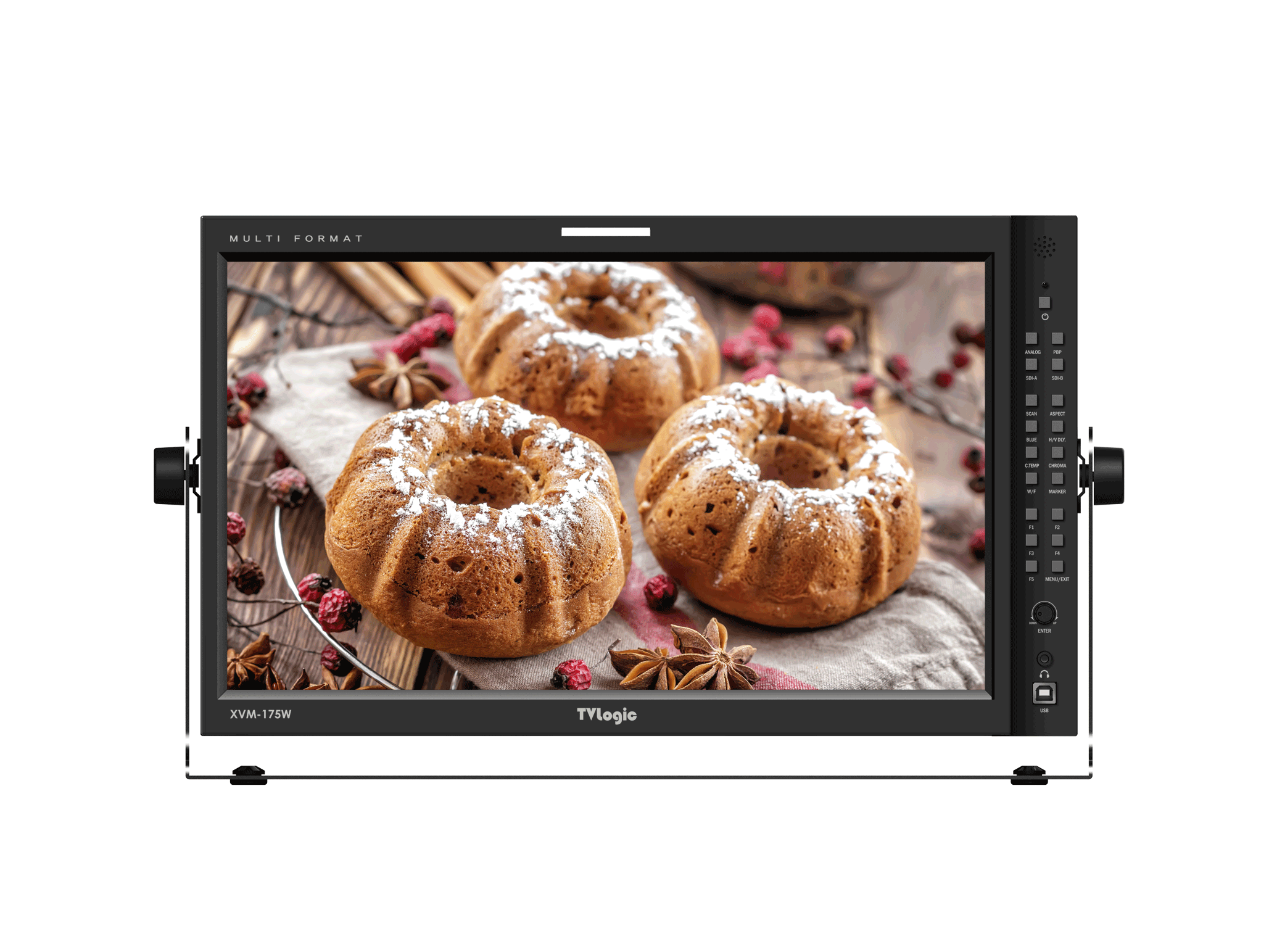

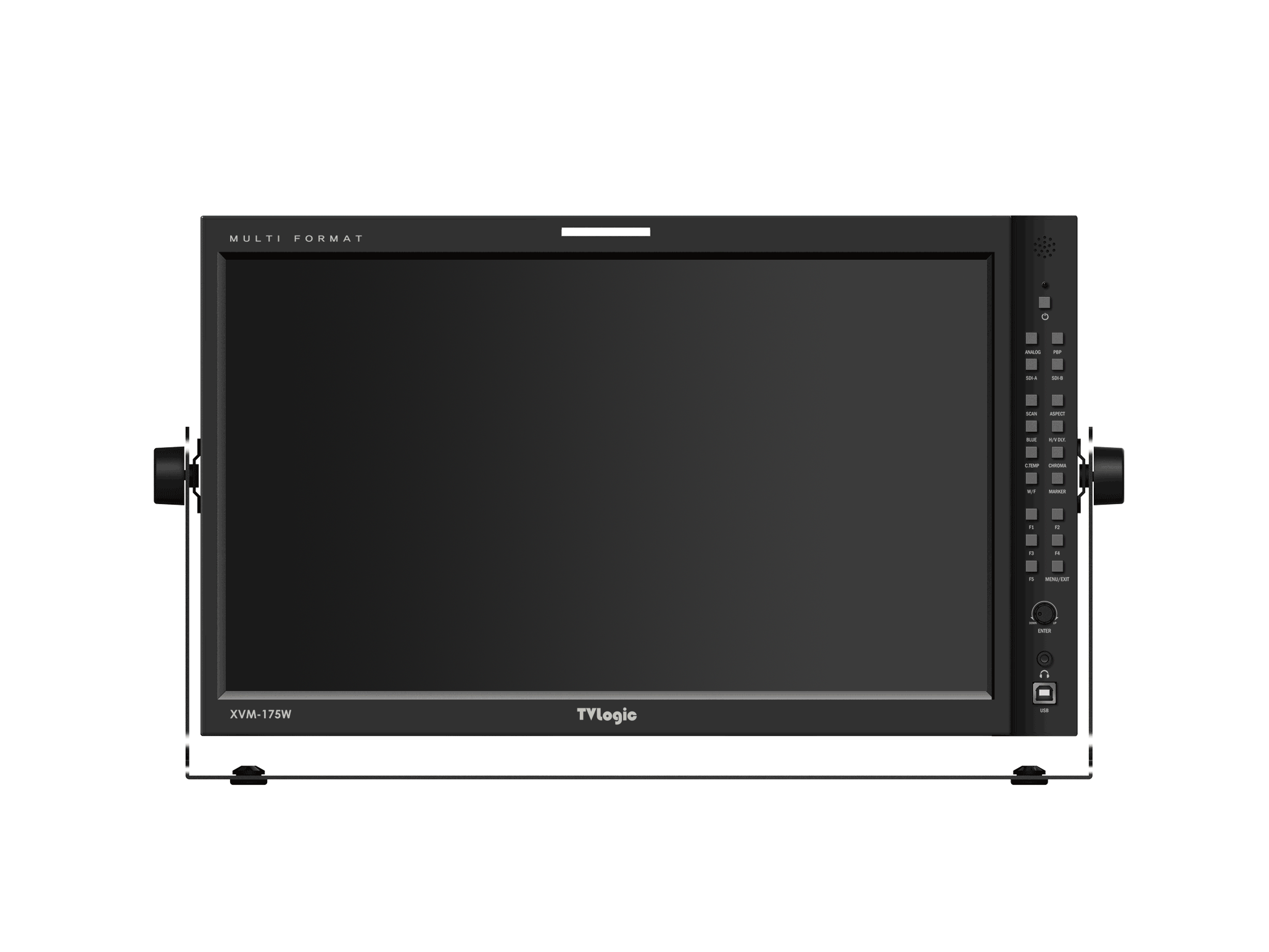

XVM-175W

XVM-175W

Choice:

Product Highlights
• 17” 1920 x 1080 (16:9) Resolution

• Matte Finish Panel
• High-Purity Precision RGB Matrix LED Backlight Array
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for proper
color alignment
• Supports Multi-point Calibration for RGB and White
uniformity correction
• Supports 3D LUT & Adjustable Gamma(1.0 to 3.0) and
user-defined mode
• Supports 3rd party 3D LUT formats for import and
export
• Firmware update by using Ethernet or USB
• GPI (RJ45)
• Timecode Display (VITC/LTC)
• Waveform/Vectorscope (Y/Cb/Cr, RGB Wide type, Line
waveform and Range Error)
• Marker / User Aspect
• Blue Only/Mono
• X3 Zoom(PBP)
• Key lock
• H/V Delay
• UMD (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708 (SDI), Line 21, ANC, OP-42,
OP-47
• Monitor control by using RS422


3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Range Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom

Display Spec.

 Size  17"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.199mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  800:1
 Display Area  382(H) x 215(V) mm
Input
 1 X BNC  Analog Input (Composite)
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 3 X BNC  Analog Output (Component)
 2 X BNC  3G-SDI A/B Channel Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
 DVI Analog  640x480/720x400/800x600/1024x768/1280x1024/ 1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1280x1024/ 1366x768
SDI Input Signal Formats
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP),  Picture by picture
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import, Uniformity Correction
Other Functions
 Reference Sync input   EXT_Sync in
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support
Options
  Carrying Case,  Gold Mount,  Rack Mount Kit(Single),  Sun Hood,  V-Mount
Dimensions



- Main Body :
445 x 264 x 66 (mm) / 17.52 x 10.39 x 2.6 (inch)
- With stand : 492.2 x 288.8 x 137.5 (mm) / 19.38 x 11.37 x 5.41 (inch)
- Weight : 6.4kg / 14.08lbs


  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download
