LVM-170A : A multi-purpose 17” Full HD Monitor.

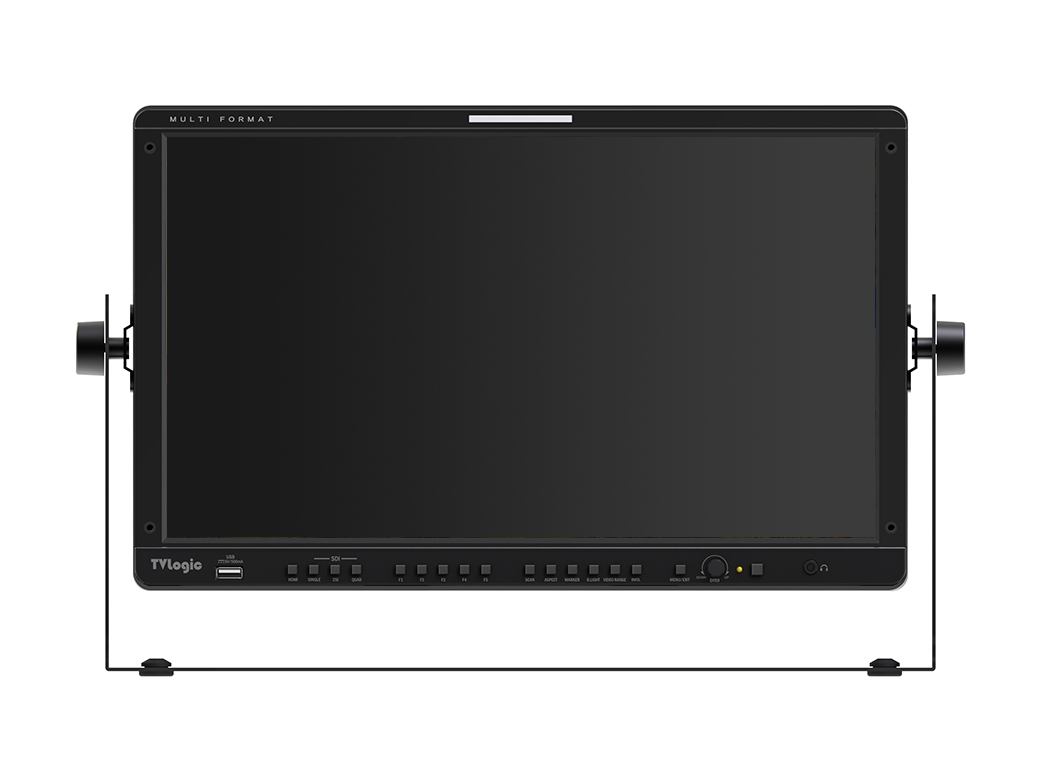

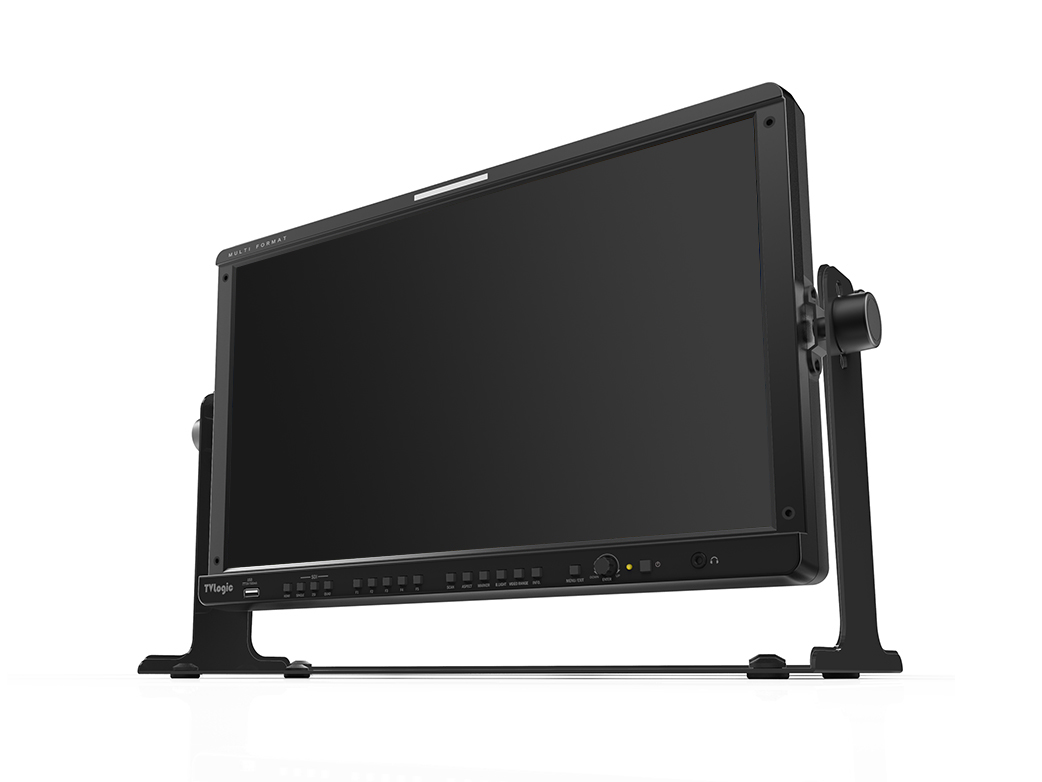

The LVM-170A is the Full HD version of TVLogic's 17inch montoring solutions. This unit features a true 16:9 aspect ratio LCD panel with 1920x1080 resolution and 10-bit video processing performance allowing for faithful color reproduction and video scaling performance..jpg)
.jpg)
Display Spec
Input
Output
Input Signal
SDI Input Signal Formats
Audio
FPGA Functions
Closed Caption
Calibration
Other Functions
Options
Dimensions
| Size | 17.3" |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixel Pitch | 0.199mm |
| Color Depth | 16.7M |
| Viewing Angle | 170°(H) / 170°(V) |
| Luminance | 300cd/m2 |
| Contrast Ratio | 800 : 1 |
| Display Area | 381(H) x 214(V) mm |
| 1 X BNC | Analog Input (Composite) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
| 1 X BNC | Analog Output (Composite) |
| 1 X BNC | 3G-SDI Output |
| Analog | CVBS / S-Video / Component Video / RGB(D-TV) |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 640x480/720x400/800x600/1024x768/1280x768/128 0x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50) |
| DVI Analog | 640x480/720x400/800x600/1024x768/1280x1024/ 1366x768 |
| DVI DP | 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50) |
| DVI DH | 1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) |
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
| CC-608 ANC, CC-608 LINE 21, CC-708 |
| TVLogic Color Calibration Utility |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Carrying Case, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), Sun Hood, V-Mount |
Basic Accessory
Optional Accessory
G-Mount-17(EMEA)_acc.jpg)
[Release Notes]
Date : 2020.05.19
LVM-170A1 [MCU Firmware Update : V0004 --> V0005]
1. Correcting OSD letter error : lod -> load
2. Activating 3G Format function in OSD
Date : 2019.01.22
LVM-170A1 [MCU Firmware Update : V0003 --> V0004]
1. Improved error of GPI Tally.
2. Improved error of SDI throughout.
Date : 2017.08.30
LVM-170A1 [MCU Firmware Update : V0001 --> V0002]
1. Added 4K 2Si signal.(monitoring)
2. Debugged SD signal position error.
