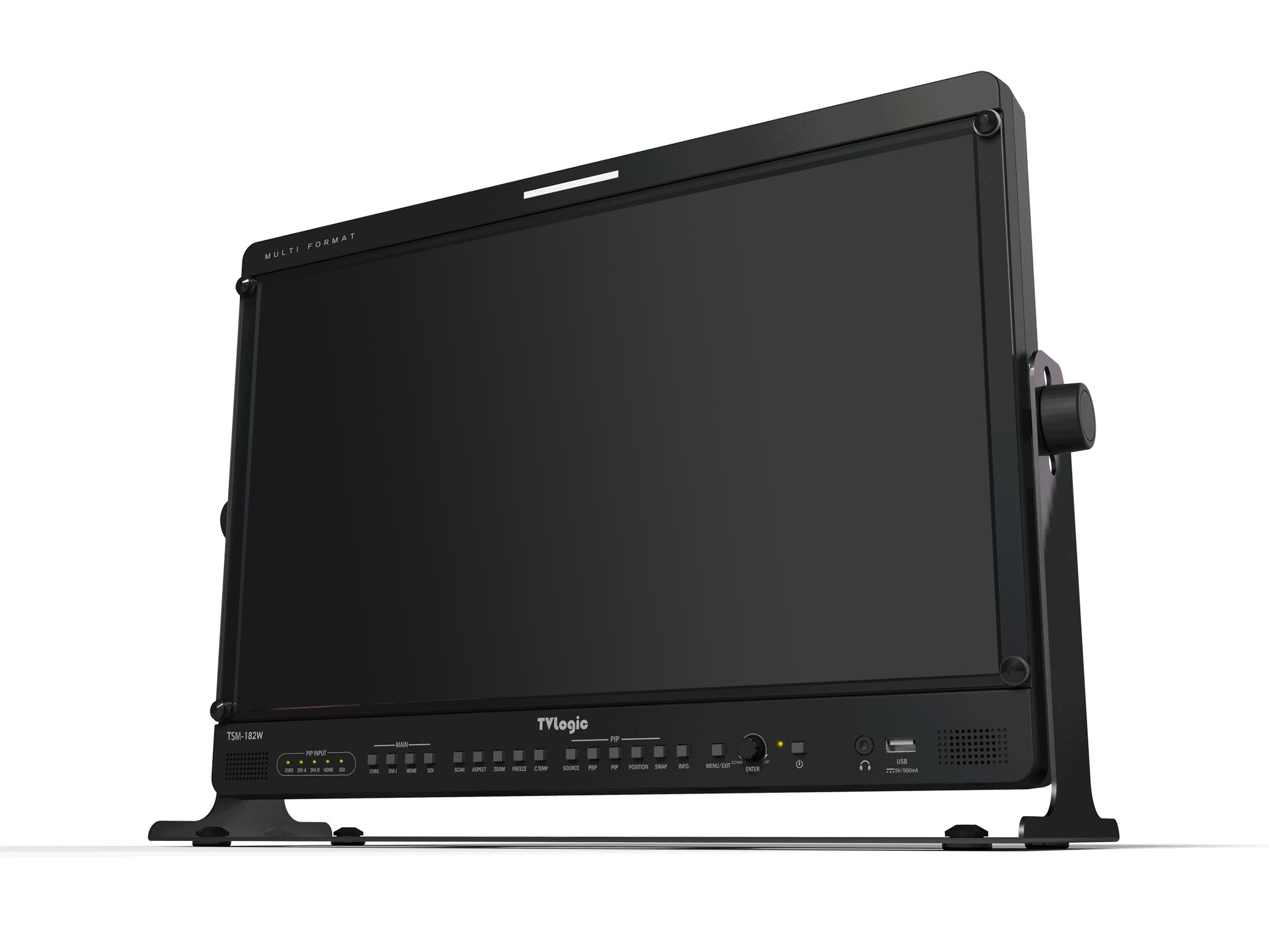

TSM-182W : 18.5” broadcast monitor.

The TSM-182W is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features.

TSM-182W

TSM-182W

Choice:

.

Key Lock

Locks the knob or key control.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Display Spec.

 Size  18.5"
 Resolution  1366 X 768 (16 : 9)
 Pixel Pitch  0.300mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  1000:1
 Display Area  409.8(H) x 254.6(V) mm
Input
 1 X BNC  Analog Input (Composite)
 1 X BNC  3G-SDI A Channel Input
 1 X D-SUB  RGBHV (VGA) IN
Output
Input Signal
SDI Input Signal Formats
Audio
 Audio Out  -
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Key Lock,  User Aspect,  Various Scan Modes,  Zoom
Closed Caption
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet
Options
  ND Acrylic Filter,  Rack Mount Kit(Single),
Dimensions

  Product Brochure (1 Page)    -
  Manual   Download
  Leaflet   Download
  Total Brochure   Download
