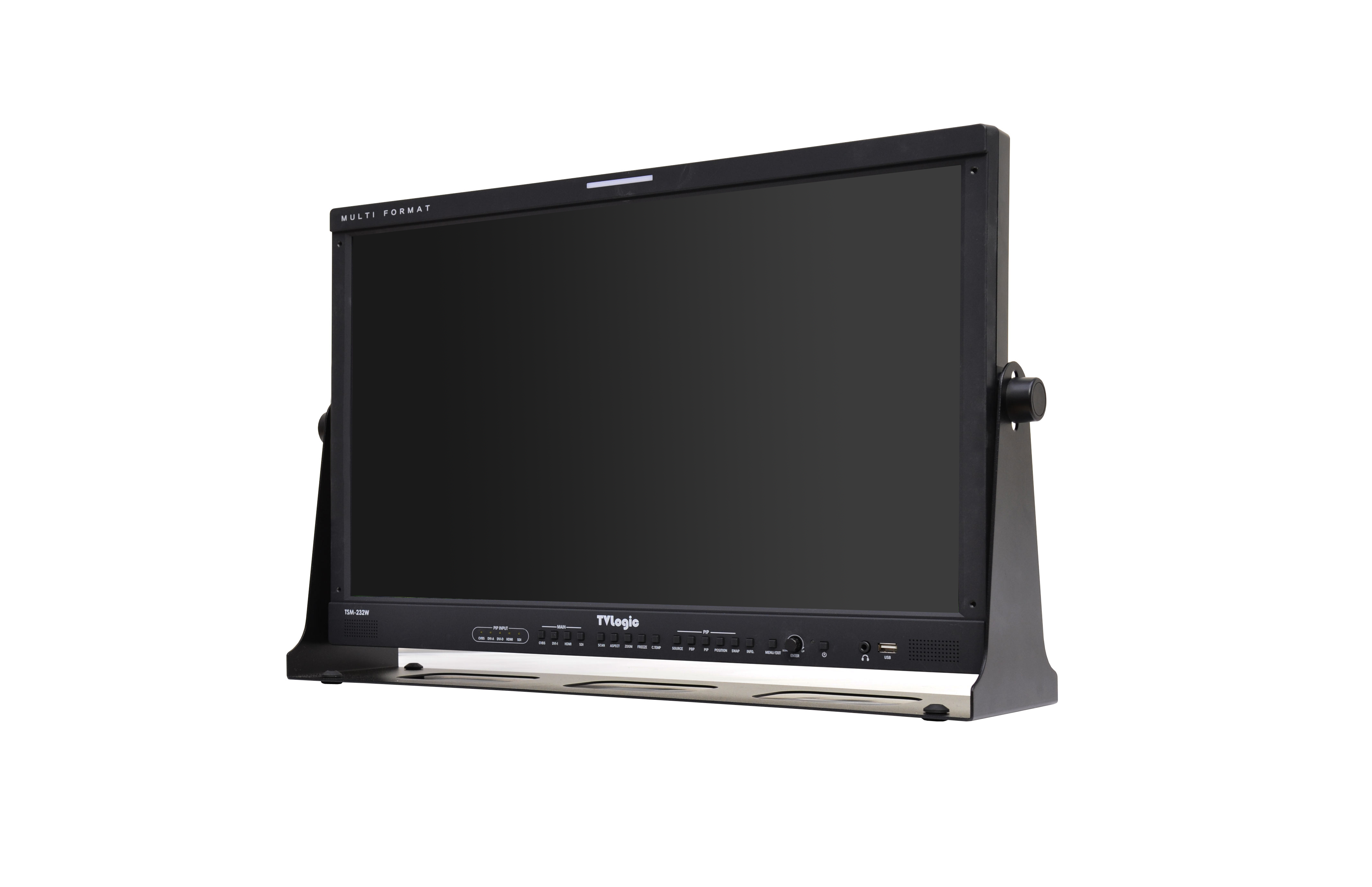

TSM-232W : 23” broadcast monitor.

The TSM-232W is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features.

TSM-232W

Choice:

.

Key Lock

Locks the knob or key control.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Display Spec.

 Size  23"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.2652 mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  1000:1
 Display Area  509(H) x 286(V)
Input
 1 X BNC  Analog Input (Composite)
 1 X BNC  3G-SDI A Channel Input
 1 X D-SUB  RGBHV (VGA) IN
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Key Lock,  User Aspect,  Various Scan Modes,  Zoom
Closed Caption
Calibration
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   SDI-to-SDI,
Options
  ND Acrylic Filter,  Rack Mount Kit(Single),
