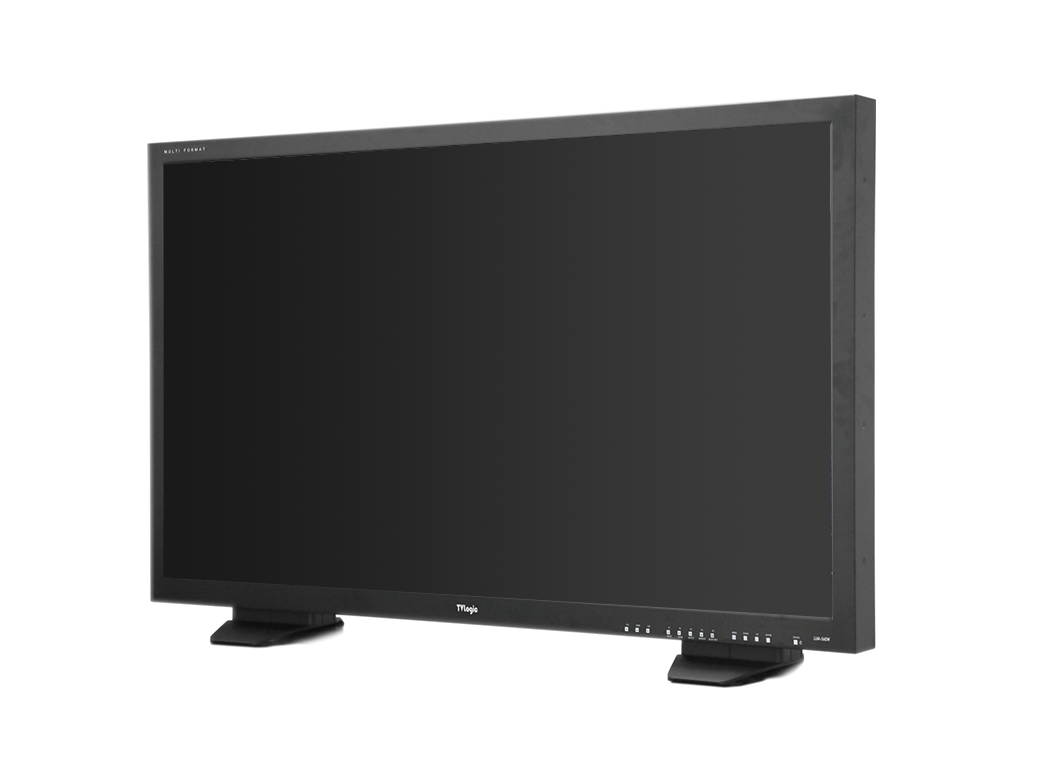

LUM-560W (4K) : 56” 4K (3840 x 2160) 10 bit display

The 56" LUM-560W is a quad HD or 4K resolution monitor with a 56” native 3840x2160 10-bit LCD panel that can display full screen 4K video or 4 individual 1920x1080 images. The LUM-560W is designed for high-end 4K cinema post as well as high-resolution industrial, military,medical and CAD design applications. The LUM-560W can display 4 inputs at a time or scale 1 input to the full screen. It offers the industry's most advanced features and video processing.

LUM-560W (4K)

Choice:



Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Locks the knob or key control.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

LUM-560W (4K) : 56” 4K (3840 x 2160) 10 bit display


1327 x 794 x 124 (mm) / 52.24 x 31.26 x 4.88 (inch)

1327 x 848.3 x 255 (mm) / 52.24 x 33.39 x 10 (inch)

67.5kg / 148.8lbs



  Product Brochure (1 Page)    -
  Manual   Download
  Leaflet   Download
  Total Brochure   Download
