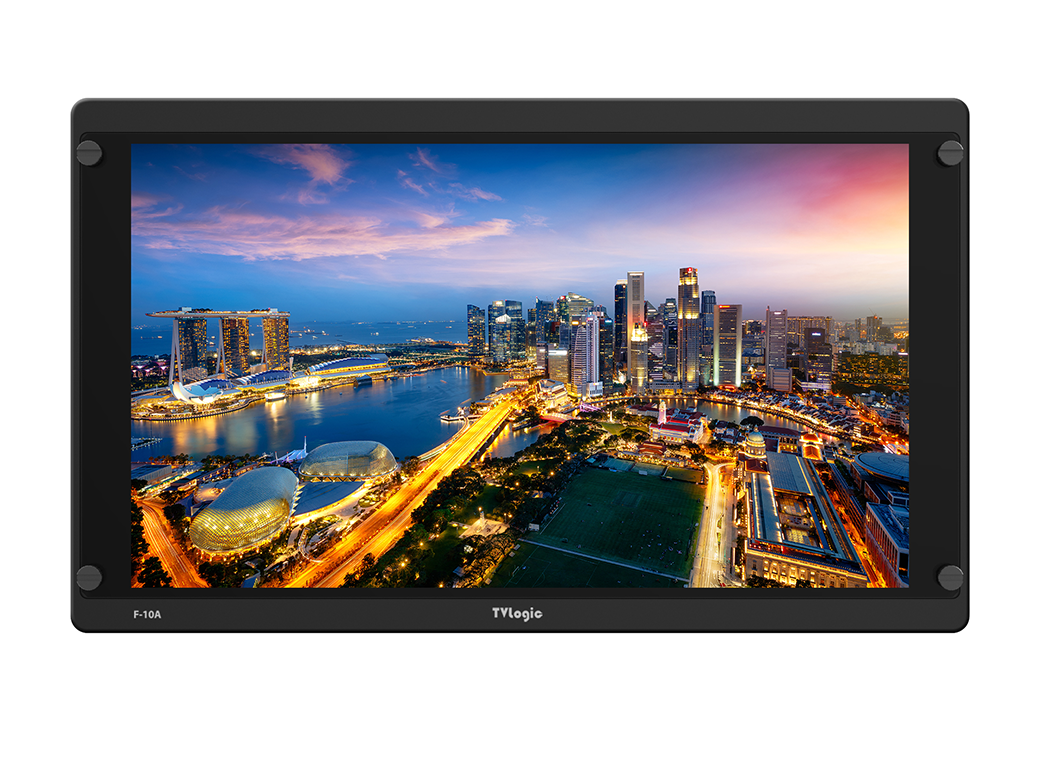

F-10A : 10’’ Full HD HDR field monitor with HDMI 2.0 & HDCP 2.2

The F-10A is the new 10" field monitor with HDR capability and Full HD resolution. Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI). In addition, it provides various professional functions such as HDMI ↔ SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.
Now Shipping!!!!
F-10A

F-10A F-10A F-10A F-10A F-10A

Choice:

F-10A

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Anamorphic Desqueeze

Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.
Anamorphic DesqueezeAnamorphic DesqueezeAnamorphic Desqueeze

ARRI Alexa Camera Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
ARRI Alex Metadata over SDIARRI Alex Metadata over SDI

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
H/V FlipH/V FlipH/V Flip

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Split Zoom

Zooms the specified area sequentially.
Split ZoomSplit Zoom

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec.

 Size  10"
 Resolution  1920 X 1080 (16:9)
 Pixel Pitch  0.11475mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  300cd/m2
 Contrast Ratio  1,000:1
 Display Area  220.32mm(H) x 123.93(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 2 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mb/s
SDI Input Signal Formats
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options

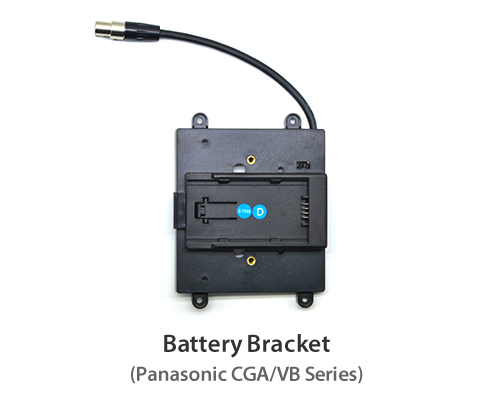

 Battery Bracket, HDMI Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Acrylic Filter,  Gold Mount,  Sun Hood,  V-Mount
Dimensions

F-10A

Basic Accessory

TH-Mount-F7H D-Tap-C BNC Connector

Optional Accessory

BH-1(BH-056) BB-F7H-S BB-F7H-C BB-F7H-P BB-F7H-U BB-F7H-E BB-F7H-B V-Mount-F7H-C V-Mount-F7H AB-mount-F7H D-Tap-S D-Tap-L OPT-AF-F10 HDMI BKT-F10 Hood-F10 DC Power adapter1 CC-F10
