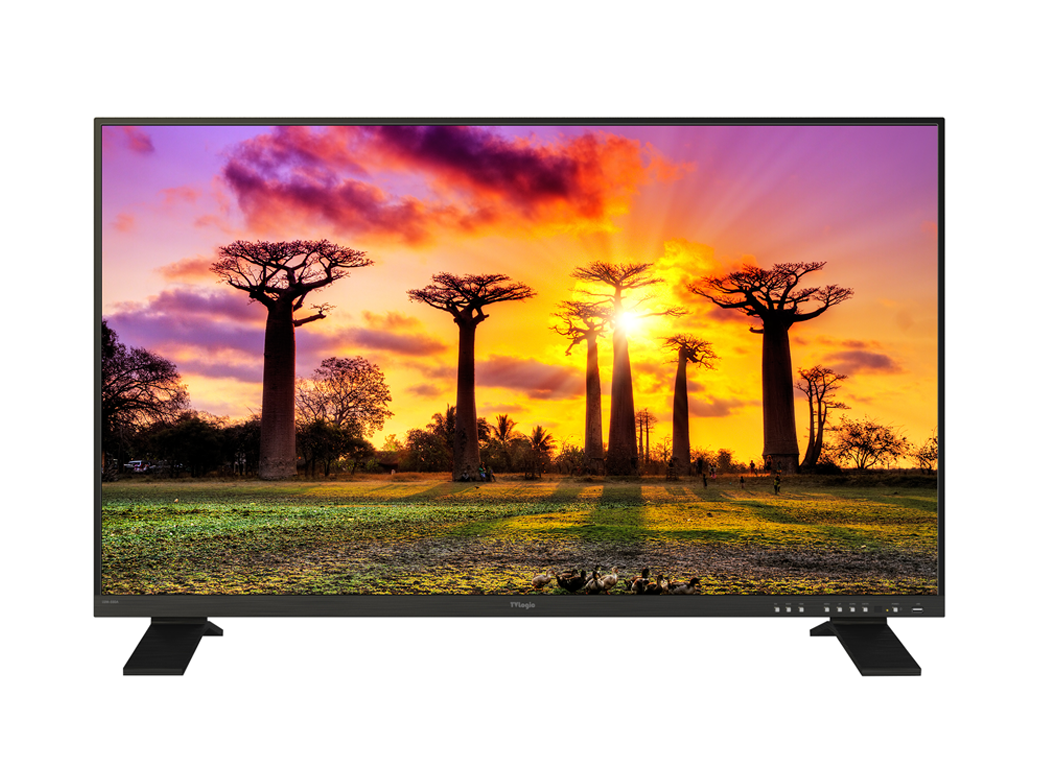

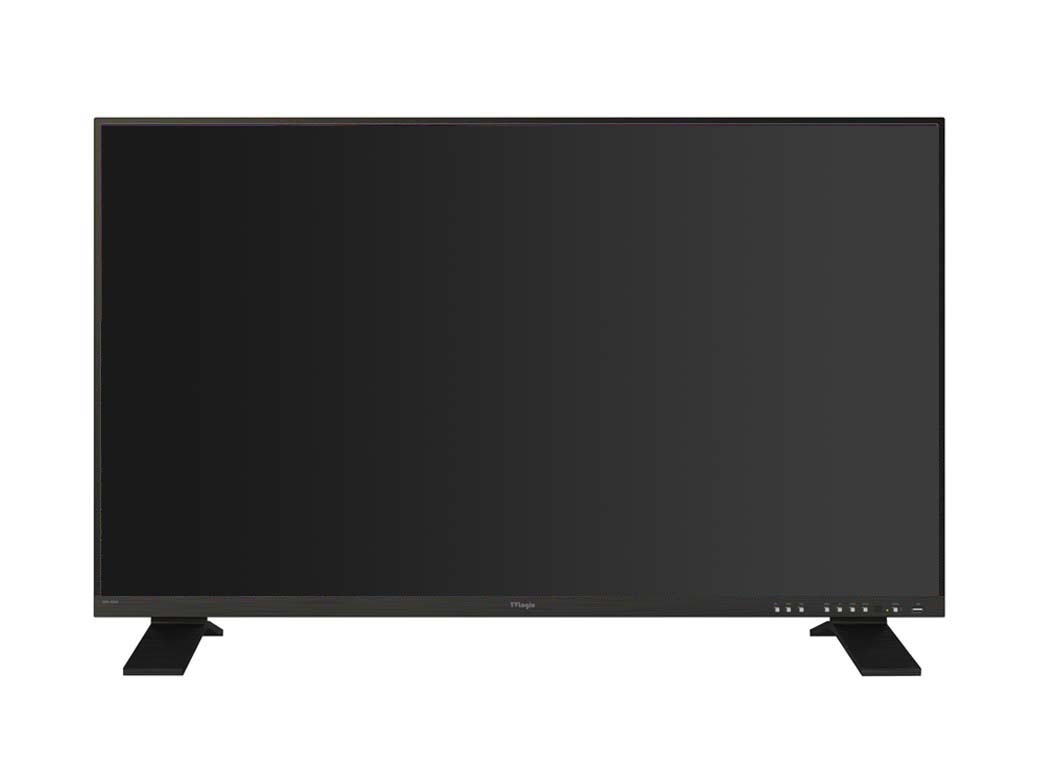

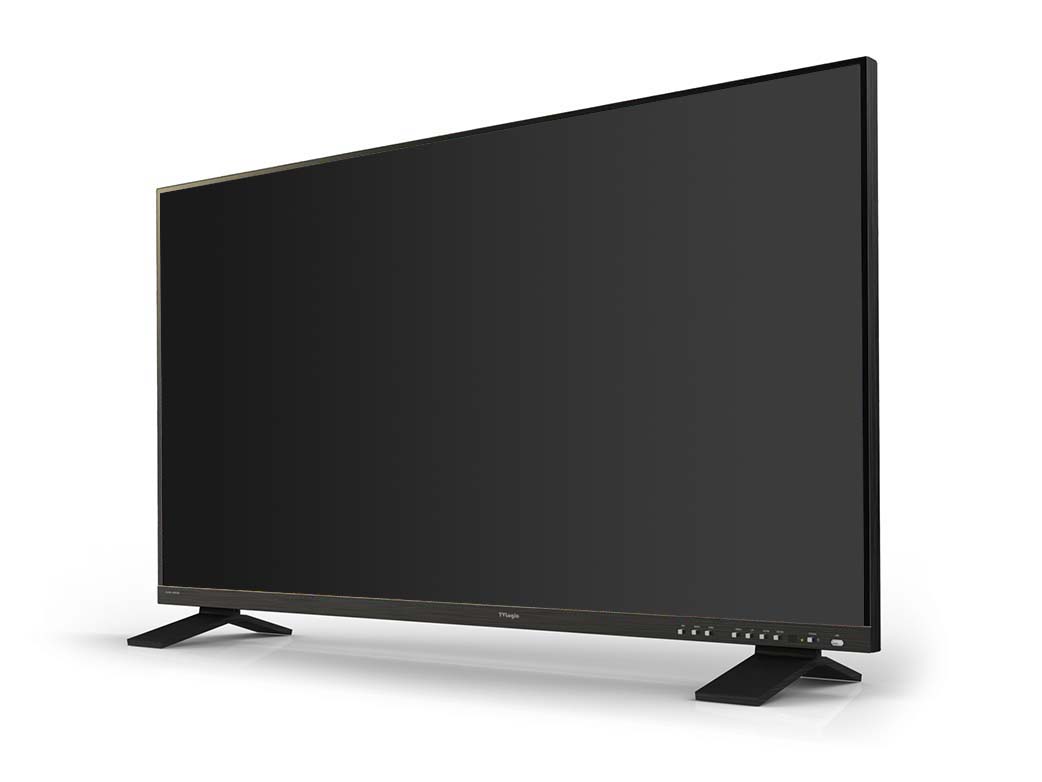

LUM-550M2 : 55’’ 4K/UHD HDR Emulation Wall Monitor

The LUM-550M2 is a 4K/UHD monitor with a 55" True UHD(3840x2160) resolution and true 10-bit drivers. It supports 12G/6G/3G-SDI inputs and an HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
LUM-550M2

LUM-550M2 LUM-550M2 LUM-550M2 LUM-550M2

LUM-550M2

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector
Display Spec.

 Size  55"
 Resolution  3840 X 2160 (16:9)
 Pixel Pitch  0.315mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  500cd/m2
 Contrast Ratio  1,100:1
 Display Area  1209.6(H) x 680.40(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  12G/3G/HD/SD SDI Output 1Ch (SDI A/B Selected channel output)
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mb/s
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/2160p
SDI Input Signal Formats
Audio
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  Key Lock,  Luma(Y') Zone Check,  Marker,  Time Code Display,  Waveform/Vector,  SingleMode,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 Stand,  Carrying Case,
Dimensions


LUM-550M2

Basic Accessory

AC Power Cord USB Cover ST-Stand IR Remote

[Release Notes]


Date  : 20.05.14

[LUM-550M2 [CPU Firmware Update : V14 -> V15  / FPGA Firmware Update : V01 ]


 1. Debugging image breaking when SDI Quad signal is applied

 2. Debugging intermittent image breaking when Pixel function is used


Date  : 20.02.06

[LUM-550M2 [CPU Firmware Update : V11 -> V14]

 1. Debugging image shaking on right top corner in inputting HDMI 1080i (50/59.94/60) signal

 2. Debugging PQ/HLG/SLOG3 Peak luminance display error

 3. Debugging backlight value error in User config 2/3 after default.

 4. Debugging not saving in User Config 1/2/3, after HDR, CAM LUT function activated

 5. Changing OSD Value Display (White)

 6. Debugging mode changing error when swapping SDI/HDMI

 7. Adding SDI 1:1 Scan Function (HDMI 1:1 scan function will be added later)

 8. Debugging minor errors.


Date : 19.10.31
[LUM-550M2 [CPU Firmware Update : V11 / FPGA Firmware Update : V01 ]
1. Debugged intermittent no image error during 3G Quad Link signal
2. Improved Signal Detecting time
