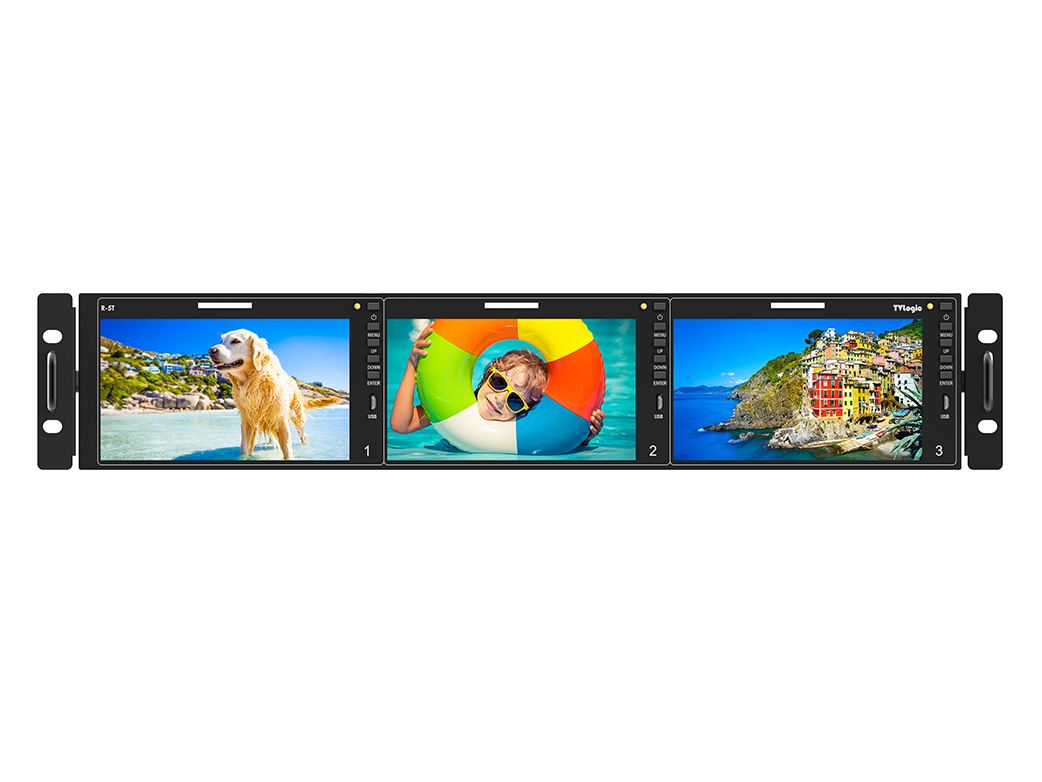

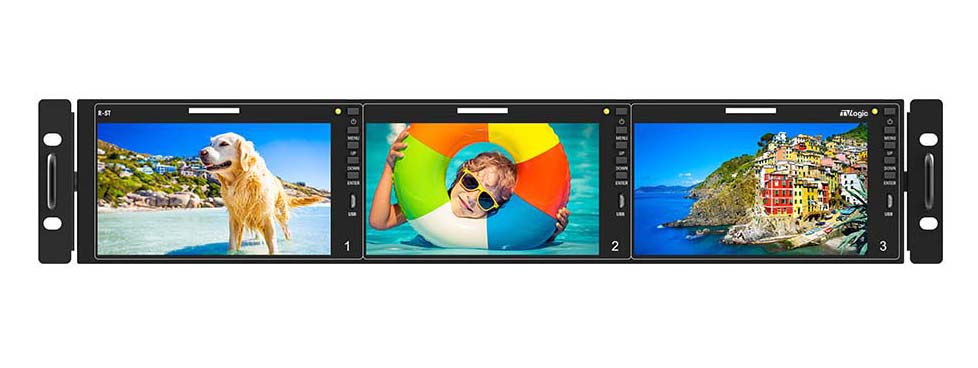

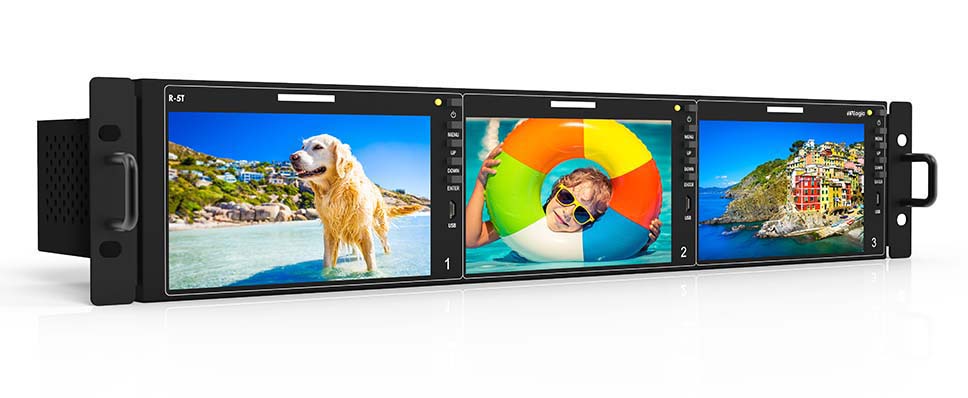

R-5T : 12G-SDI Supported 3 x 5.5’’ LCD Full HD Screen

The R-5T is a brand-new rack monitor(3 x 5.5”) with advanced design and performance. It offers an outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance up to 500cd/㎡. The R-5T supports the video formats up to 12G-SDI and HDMI 1.3Ver and the professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope and UMD.
Now Shipping!!!!

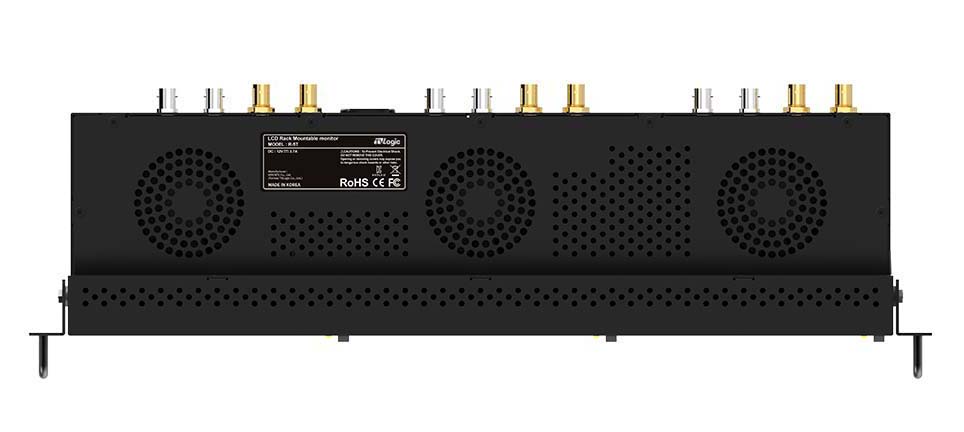

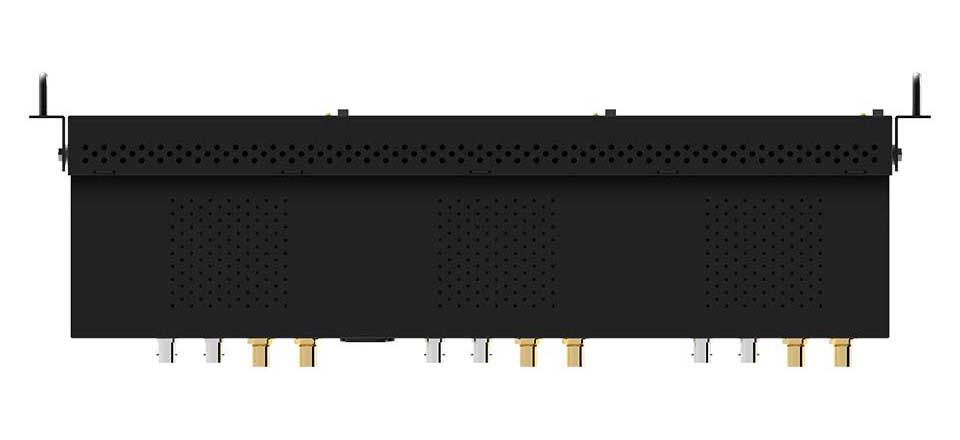

R-5T

R-5T R-5T R-5T R-5T R-5T

Choice:

R-5T

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Display Spec.

 Size  5.5"
 Resolution  1920 X 1080 (16:9)
 Pixel Pitch  0.0213(W) x 0.0639(H)
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  500cd/m2
 Contrast Ratio  1,000:1
 Display Area  122.7(H) × 69.0(V) mm

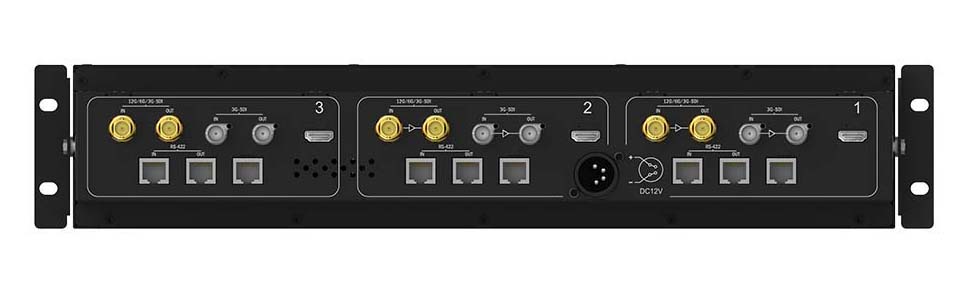

Input
 2 X BNC  SDI Input(12G-SDI x 1 / 3G-SDI x 1)
 1 X HDMI  HDMI Input
Output
 2 X BNC  1 x 12G-SDI / 1 x 3G-/SDI OUTPUT
Input Signal
 3G SDI  2.970Gbps
 12G SDI  11.880Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mb/s
 HDMI  1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)
SDI Input Signal Formats
 SMPTE 2082  3840x2160(60/50/59.94p)
 SMPTE 2081  3840x2160 (30/25/24p/23.98p/29.97p)
 SMPTE 425M-A/B  1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio Out  -
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
Dimensions

R-5T

Basic Accessory

AC Power Cord DC Power adapter2 Rack Mount Kit
  Product Brochure (1 Page)    -
  Manual   Download
  Leaflet    -
  Total Brochure   Download
