S-32P : 32
The S-32P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
.png)
.png)

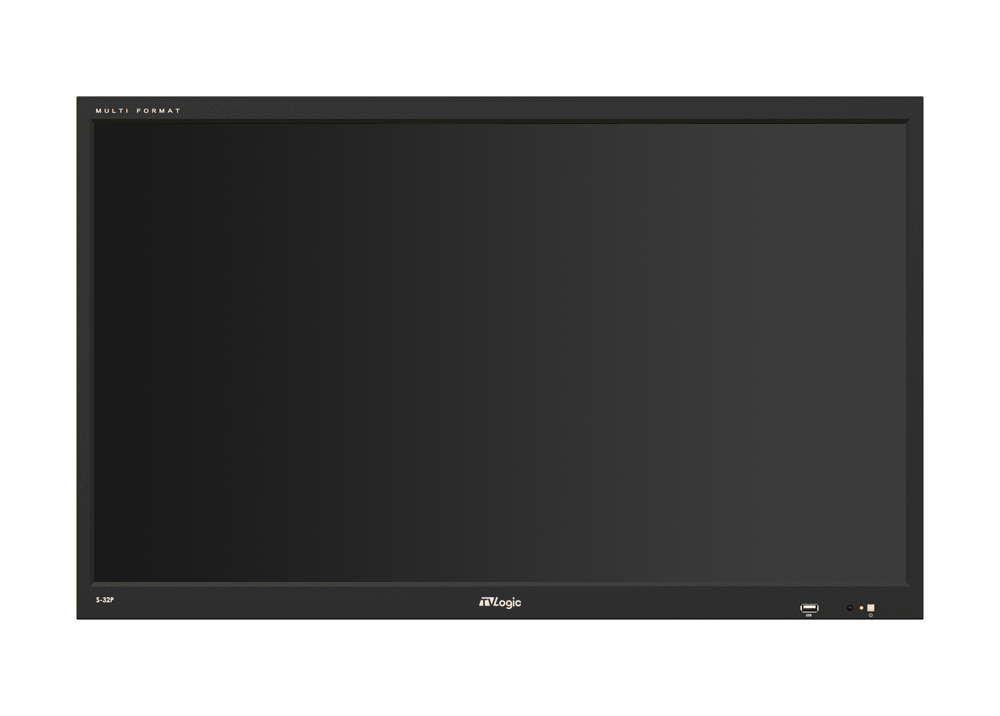

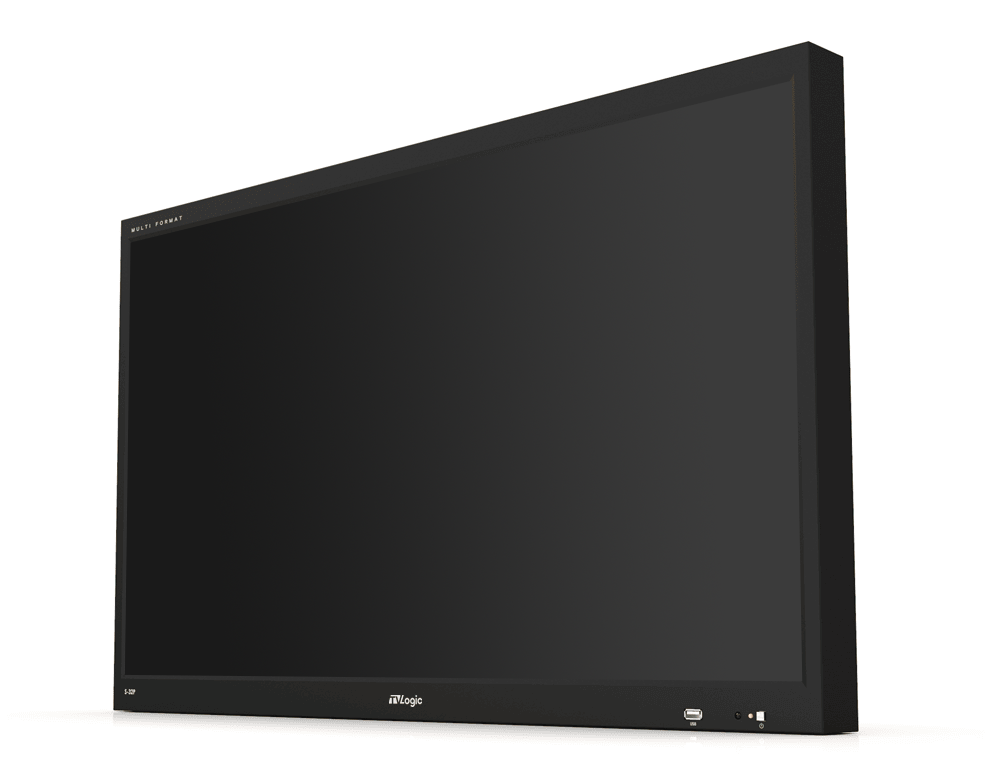

32" FHD Studio Wall Monitor with SFP Module & Ember+ Protocol
The S-32P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle.
It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility.
The S-series provides network control by Ember+ protocol and HDR function with HDR EOTFs of PQ, HLG and SLog3.

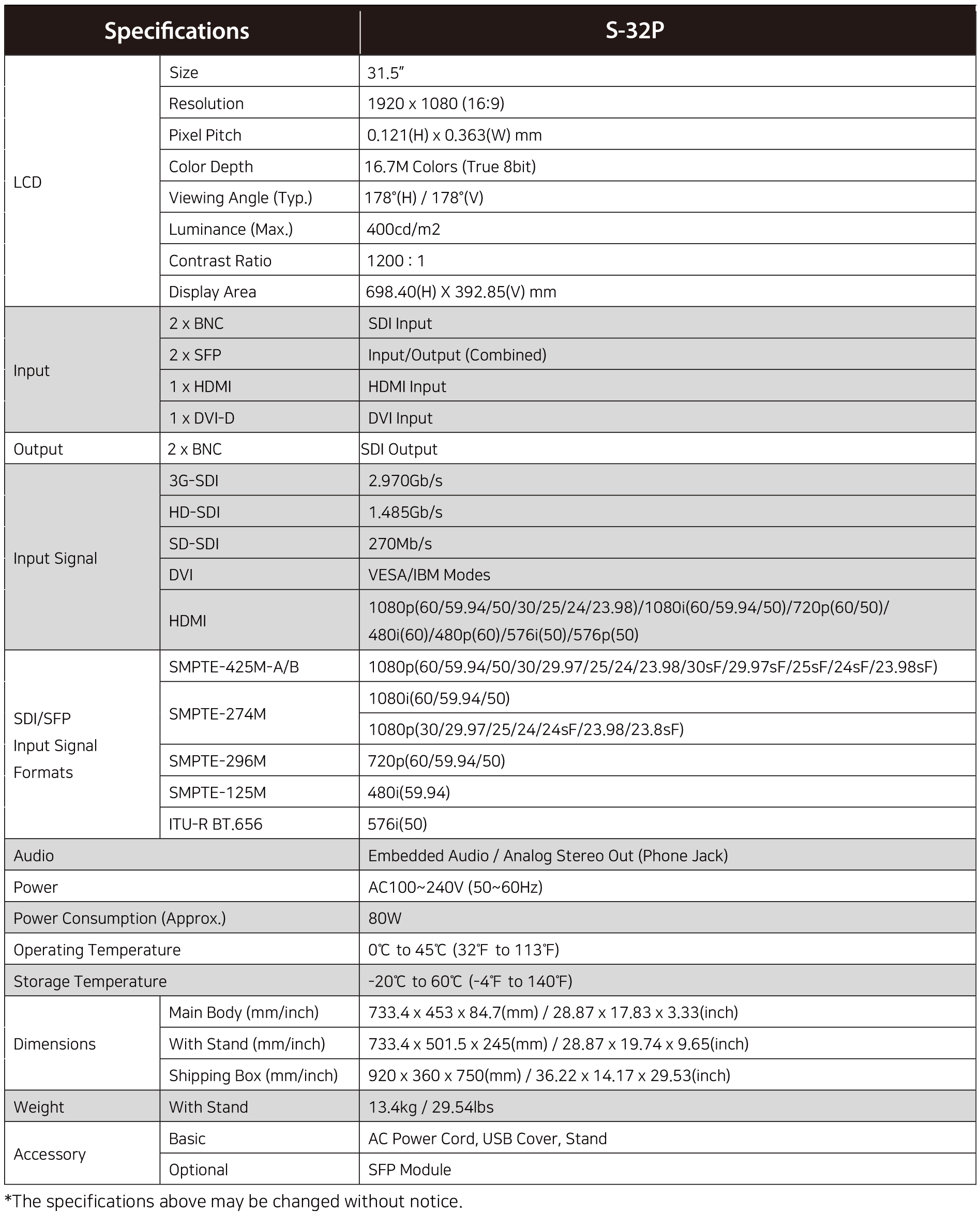

Main Body Dimensions
Main Body 733.4 x 453 x 84.7(mm) / 28.87 x 17.83 x 3.33(inch)
With Stand 733.4 x 501.5 x 245(mm) / 28.87 x 19.74 x 9.65(inch)
Weight 13.4kg / 29.54lbs
Product Highlights
• 31.5” Full HD Resolution (1920×1080)
• HDR (PQ, HLG, SLog3)
• Ember+ Protocol (LAWO)
• TSL 3.1/5.0 Support
• Selectable Output via Internal Routing
• 2 x SFP Input/Output
• PBP(Picture By Picture)
• Fast Mode
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Closed Caption (CC-608/708, CC-KOR, OP47)
• Waveform
• Vectorscope (High Resolution)
• 16ch Audio Level Meter
• Dual Markers (Main & Sub)
• Timecode Display
• Dynamic UMD
• User Aspect
• Luma(Y’) Zone Check
Optional Accessories
