LUM-096G : 10” 12G Ready Multi-Purpose Monitor

The LUM-096G supports 12G/6G/3G-SDI input with a native 1920 x 1080 LCD.



LUM-096G

LUM-096G LUM-096G LUM-096G

10” 12G Ready Multi-Purpose Monitor

The LUM-096G supports 12G/6G/3G-SDI input with a native 1920 x 1080 LCD. This monitor can be the most versatile monitoring and field production applications with 4K/UHD cameras.
















Main Body Dimensions
Main Body   254 x 175 x 60 (mm) / 10 x 6.89 x 2.36 (inch)
With Stand  295.2 x 194.2 x 90 (mm) / 11.62 x 7.65 x 3.54 (inch)
Weight         2.44Kg / 5.38lbs




Product Highlights
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• HDR (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• Closed Caption (CC-608, CC-708)
• H Flip & V Flip (Auto & Manual)
• Various Aspect
• Luma(Y’) Zone Check

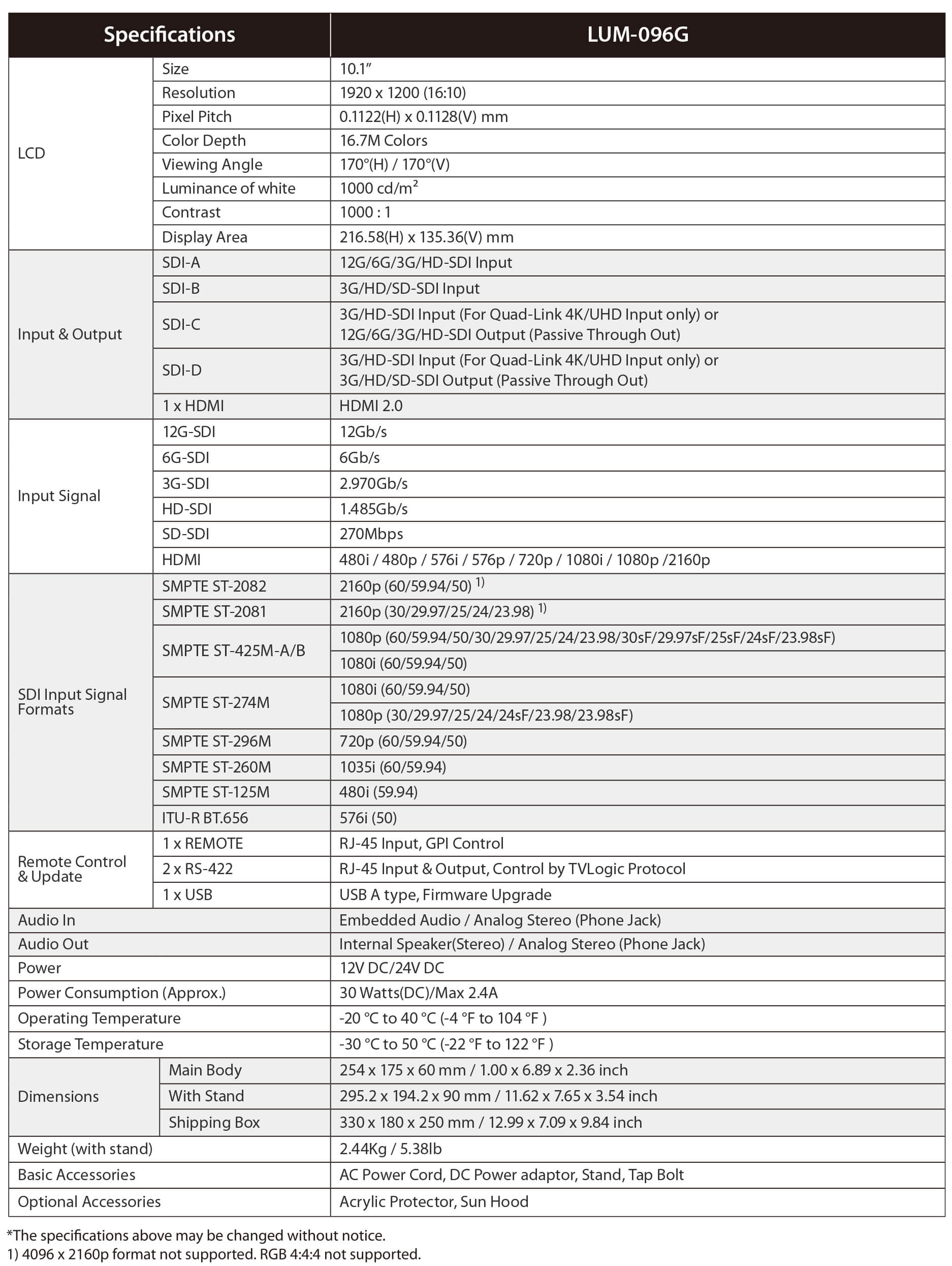

Display Spec
