LQM-241W : Available while suppies last

24” 1920 x 1080 Native HD LCD Quad Split Display

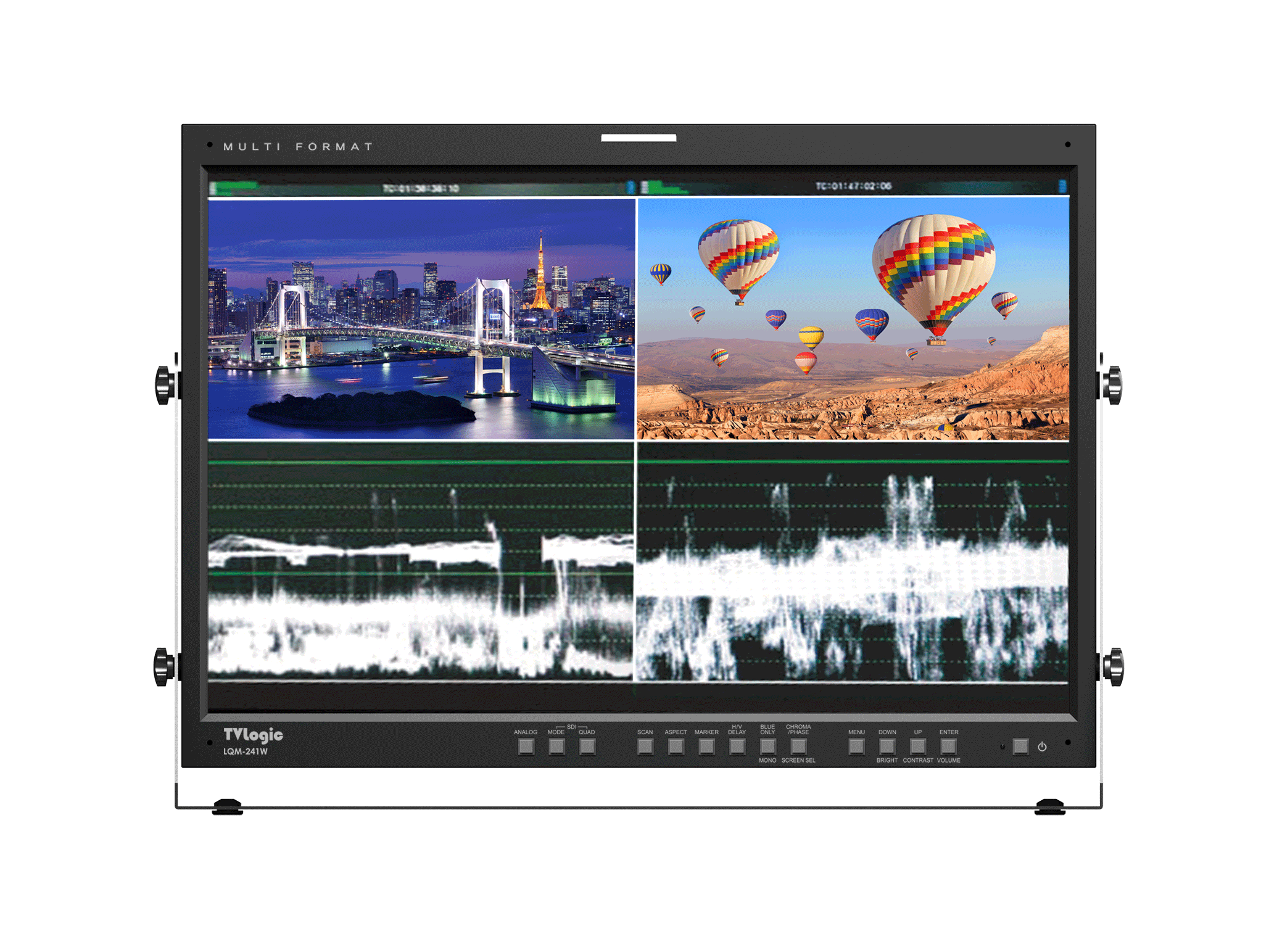

The LQM-241W is a high quality 24 inch Quad-Split Monitor sharing a majority of the advanced functionality found in the LVM-243W. The LQM- 241W supports 4 HD/SD-SDI inputs at a time in quad split mode and can also display any additional sources full screen or as one of the Quad Split Windows. The LQM-241W also features 4 HD/SD-SDI outputs as well as hosting advanced Waveform and Vectorscope functions.
LQM-241W

LQM-241W


Spec_Q241

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector
Display Spec

 Size  24"
 Resolution  1920 X 1200 (16 : 10)
 Pixel Pitch  0.270mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  1000:1
 Display Area  518(H) x 324(V) mm
Input
 1 X BNC  Analog Input (Composite)
 3 X BNC  Analog Input (Component)
 4 X BNC  HD SDI A/B/C/D Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 3 X BNC  Analog Output (Component)
 4 X BNC  HD SDI A/B/C/D Channel Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA / IBM Modes
 DVI Analog  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024
 DVI DP  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1600x1200/1920x1200/1920x1080
SDI Input Signal Formats
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Time Code Display,  UMD,  Various Scan Modes,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet
Options
  Carrying Case,  ND Acrylic Filter,  Rack Mount Kit(Single),
Dimensions



- Main Body :
552.5 x 389 x 95 (mm) / 21.75 x 15.31 x 3.74 (inch)
- With stand : 584 x 416.8 x 150 (mm) / 23 x 16.4 x 5.9 (inch)
- Weight : 11kg / 24.25lbs
