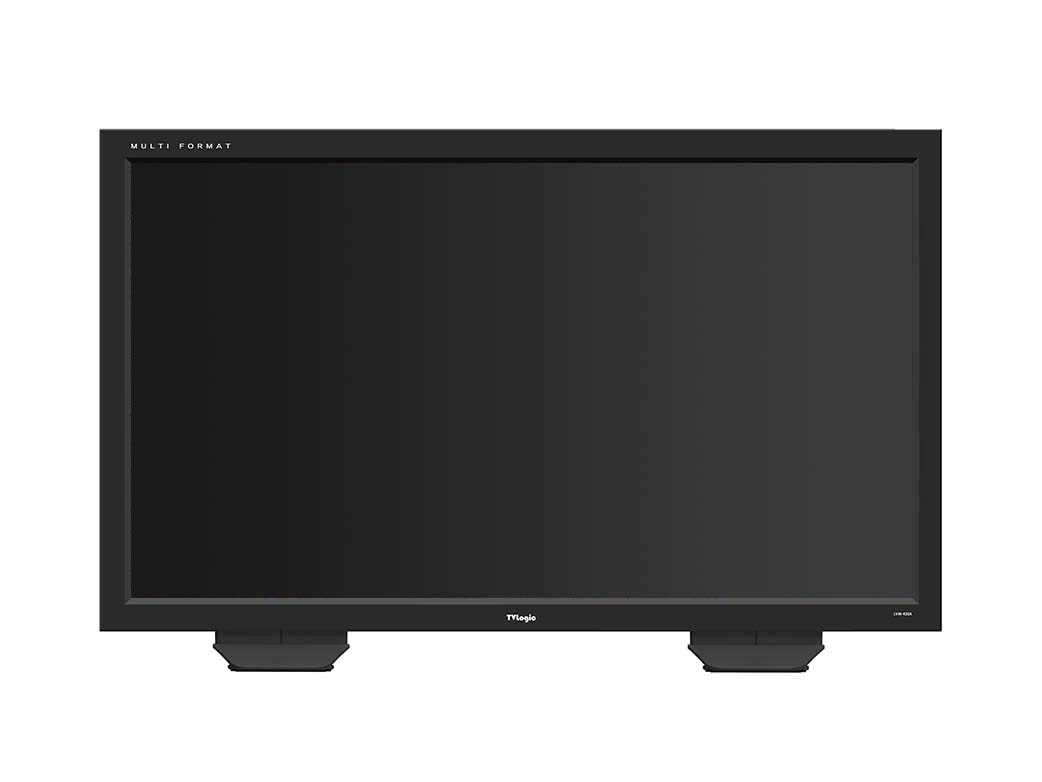

LVM-460A : Premier, Broadcast Quality, 46” Multi-Format Monitoring Solution

The LVM-460A utilizes the highest-grade 1920 x 1080 resolution LCD panel integrated with TVLogic’s powerful scaling engine and 3G/Dual-Link support. And features such as various Scan modes, traceable color temperature,On-screen Audio Level Meters and HDCP decryption will provide the professional users with unsurpassed HD and SD video quality and performance.

LVM-460A

Choice:

LVM-460A

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

LVM-460A : Premier, Broadcast Quality, 46” Multi-Format Monitoring Solution

Main body Dimensions
- Main Body : 1070.6 x 625.5 x 100.6 (mm) / 42.1 x 24.6 x 3.9 (inch)
- With stand : 1070.6 x 679.6 x 255 (mm) / 42.1 x 26.7 x 10 (inch)
- Weight : 33kg / 72.75lbs
