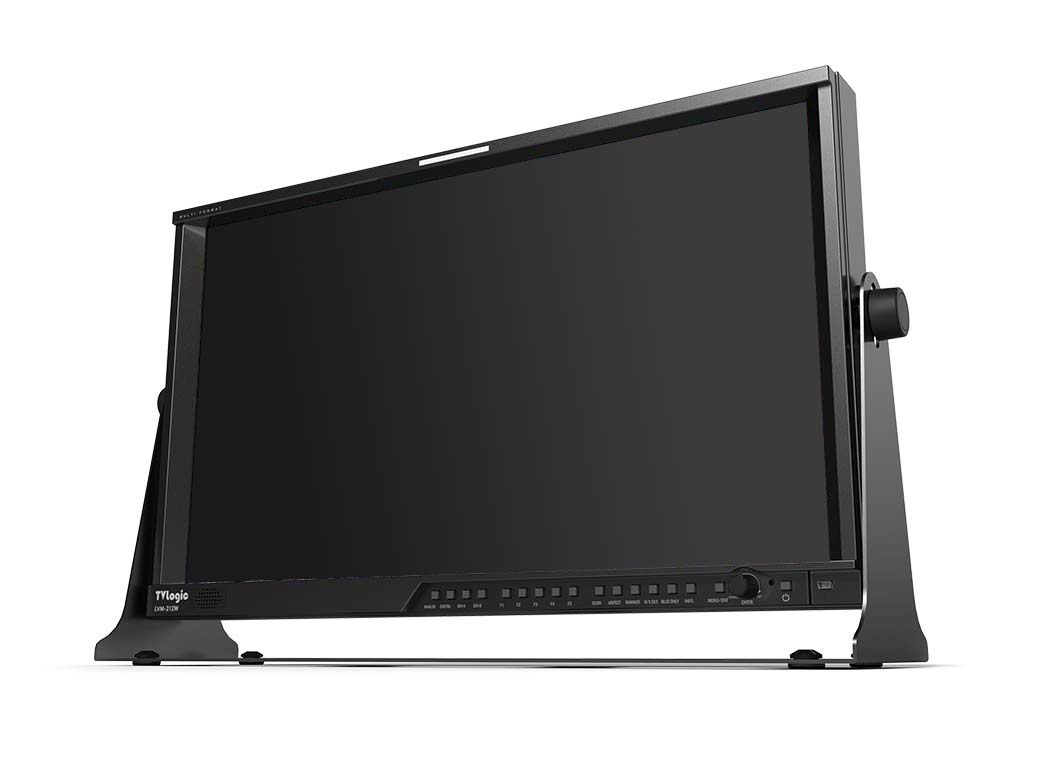

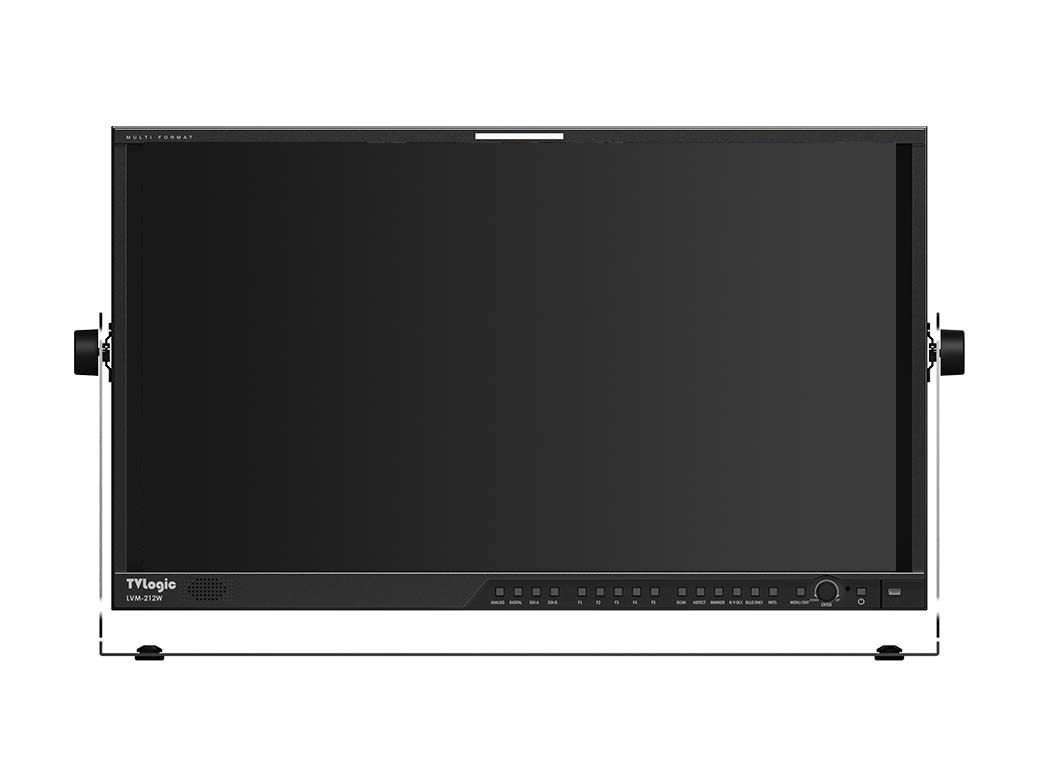

LVM-232W-A : 23” broadcast monitor.

The LVM-232W-A is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features. Utilizing the state-of-the-art IPS LCD panel and combined with The TVLogic's excellent video processing technology, LVM-232W-A provides outstanding viewing angle with accurate colors and rich professional features.

LVM-232W-A

Choice:

LVM-232W-A

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

Display Spec.

 Size  23"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.2652mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  1000:1
 Display Area  509(H) x 286(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  SDI A/B Selected Channel Output (Loop Through Out)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet
Options

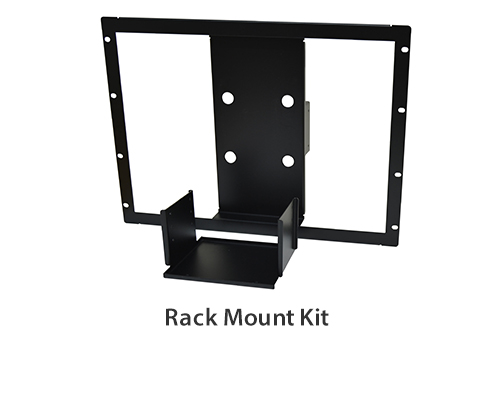

  Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount

LVM-232W-A : 23” broadcast monitor.

LVM-232W-A

  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download

LVM-232W-A : Firmware DownLoad

[Release Notes]
Date : 19. 03.12
[LVM-182W/232W [MCU Firmware Update : V17, FPGA : V04 ]
1. Debugged the Scan 1:1 key error
2. Improved the SDI Through Out
3. Debugged the Tally error
4. Debugged the screen error with 3G Level B

Date : 18. 06.08
[LVM-176W/246W [MCU Firmware Update : V16]
1. Added Eco Saving Mode

Date : 17. 09.25
[LVM-176W/246W [MCU Firmware Update : V16]
1. Improved SD SDI Position

Date : 17. 06.29 [LVM-182W/232W [MCU Firmware Update : V14]
1. Added 4K 2Si payload.

Date : 16. 01.12
[LVM-182W/232W [MCU Firmware Update : V11]
1. Debugged to come up [No signal] when swithching a signal from Evertz router.
2. Activate [Unstable count] feature.
* [Unstable count] feature can be used to set switching timing on the monitor.

Date : 15. 04.01
[LVM-182W/232W [MCU Firmware Update : V10]
1. Added Audio Level Meter (8CH, 8CH Side, 4CH, 4CH Side)
Before : [Off]-[16CH(Hor.)]-[16CH(Ver.)]-[Off]
After : [Off]-[16CH(Hor.)]-[16CH(Ver.)]-[8CH]-[8CH Side]-[4CH]-[4CH Side]-[Off]

** When selecting 8C or4CH, activate to select Group.
- 8CH & 8CH Side : [G1+G2]-[G2+G3]-[G3+G4]-[G1+G3]-[G1+G4]-[G2+G4]
- 4CH & 4CH Side : [G1]-[G2]-[G3]-[G4]

Date : 14. 09.05
[LVM-182W/232W [MCU Firmware Update : V07]
1. Improved Audio Volume.
2. Support 1080p feeding Analog(RGB).
3. Add Focus Assist function on BLUE ONLY Key.

Date : 14. 04.30
[LVM-182W/232W [MCU Firmware Update : V06]
1. Activate Dithering function.

Date : 13.11.15
[LVM-176W [MCU Firmware Update : V03] LVM-176W/182W/232W [FPGA Update : FPGA_03]
1. Debugged vertical noise on the screen.
2. Debugged key malfunction when putting Menu key then Enter or Direction key.
[Caution]
The firmware of MCU(v03) can be used for LVM-176W, 182W, and 232W.
However, the firmware of FPGA(v03) is the only for LVM-176W.(file name: LVM-176_V03_R3_131112.rbf)
The next version of MCU(v04) will be combined all models.

Date : 13.07.23
[LVM-176W/182W/232W [MCU Firmware Update : V02] [FPGA Update : FPGA_02]
1. Debugged screen noise when feeding SDI signal(1080p(30))
2. Debugged error on Level Meter when turning on Audio Level Meter feeding HDMI signal.
3. Debugged showing channel error when turning on Audio Level Meter feeding HDMI signal.
4. Debugged mutted sound when turning on and off Soft Power feeding SDI and HDMI signals.
5. Debugged screen noise of colors when feeding 1080 24p/23.98p.(LVM-232W)
