LVM-095W-N : 9” FHD Multi-purpose Monitor

The LVM-095W-N the new 9" released from TVLogic displays full HD resolution of 1920x1080. It also corresponds with a wide range of image sources (3G HD/SD-SDI, HDMI) and provides a wide viewing angle (176 degrees). For maximized efficiency and economic feasibility, LVM-095W-N is constructed from aluminum for an extra-light body weight and a holds a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability that exactly meets the HDTV standards, LVM-095W-N gives super clear picture quality with powerful features.

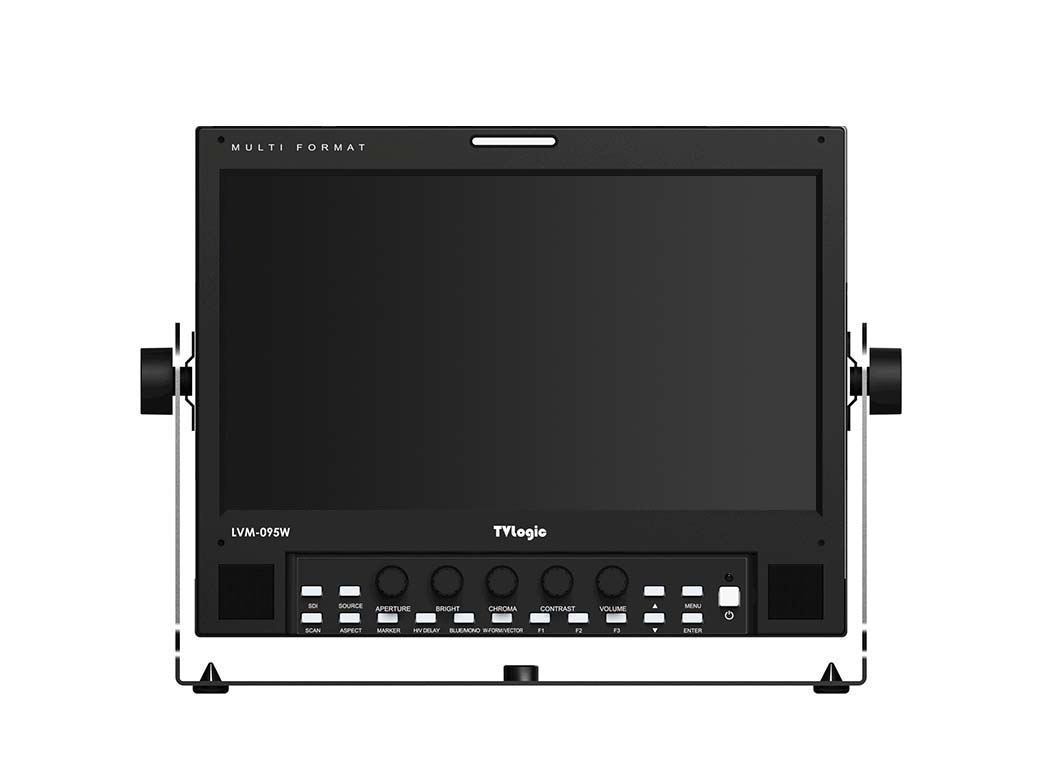

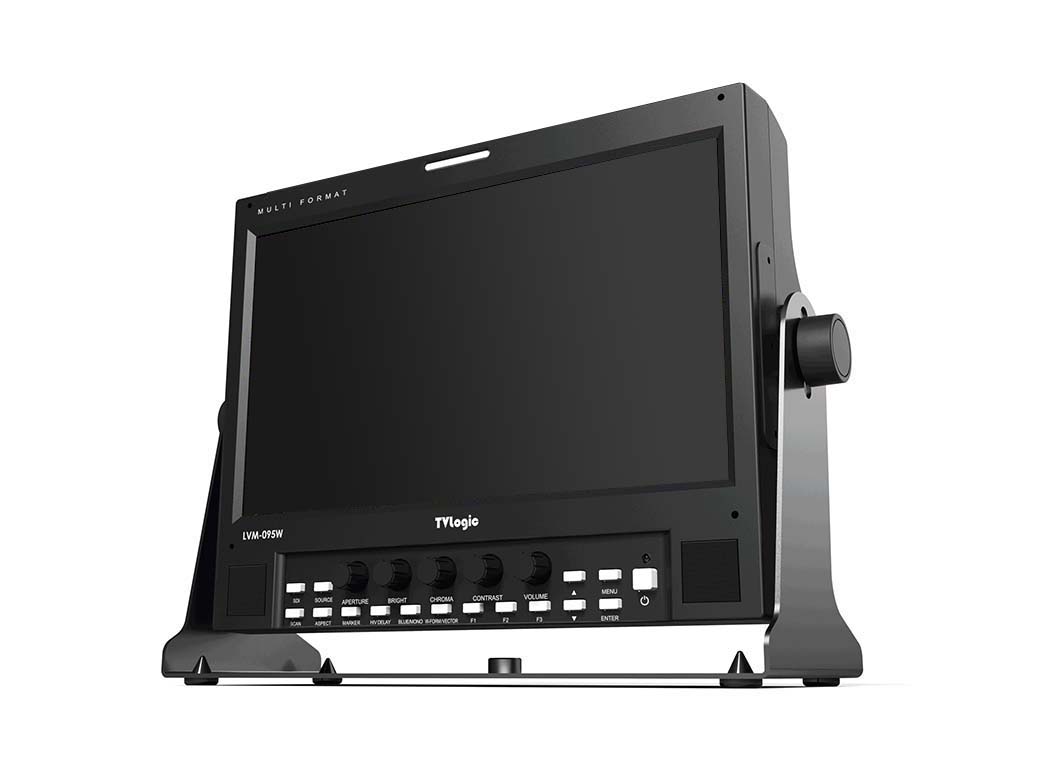

LVM-095W-N

LVM-095W-N LVM-095W-N LVM-095W-N

LVM-095W-N

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
H/V FlipH/V FlipH/V Flip

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec.

 Size  9"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.1035mm
 Color Depth  16.7M
 Viewing Angle  176°(H) / 176°(V)
 Luminance  400cd/m2
 Contrast Ratio  750:1
 Display Area  198(H) X 111(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  SDI A/B Selectable Output
Input Signal
 Analog  CVBS (SDI b port select)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (23.98/24/25/30/50/59.94/60)/1080i(50/59.94/60)/720p(50/60) 480i(60)/480p(60)/576i(50)/576p(50)640x480/720x400/800x600/1024x768/ 1280x768/1280x1024/1366x768
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet
Options
 HDMI Bracket,  Camera Mount, Ball Head,  Carrying Case,  External Acrylic Filter,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,
Dimensions

LVM-095W-N

Basic Accessory

AC Power Cord DC Power adapter2 Stand-9 Handle-9 TH-Mount-09

Optional Accessory

BH RMK-095-D RMK-095-S OPT-AF-091 CBH-095 HDMI BKT-095 HOOD-095

[Release Notes]
 LVM-095W-N2 : You must check out model name of your monitor on OSD menu. It must show LVM-095W-N2 if you want to upgrade this firmware.

Date : 2017.08.30
LVM-095W-N2 [MCU Firmware Update : V0003 --> V0004]
1. Added 4K 2Si signal.(monitoring)
2. Debugged SD signal position error.

Date : 2016.04.14
LVM-095W-N2 [MCU Firmware Update : V0002 --> V0003]
1. Revised Sony S-Log1/2/3 Lut data

[Update : 2016.01.19] LVM-095W-N2 : [FPGA : 07 -> 08][MCU : 01 -> 02]
- Revised Unstable Count.
- Added [White level] feature on Focus Assist.
- Added [Camera LUT] feature for ARRI, RED, Sony, and Cannon camera.

[Update : 2015.09.22] LVM-095W-N2 : [FPGA : 06 -> 07]
- Debugged noise of sound when HDMI to SDI Thru.
