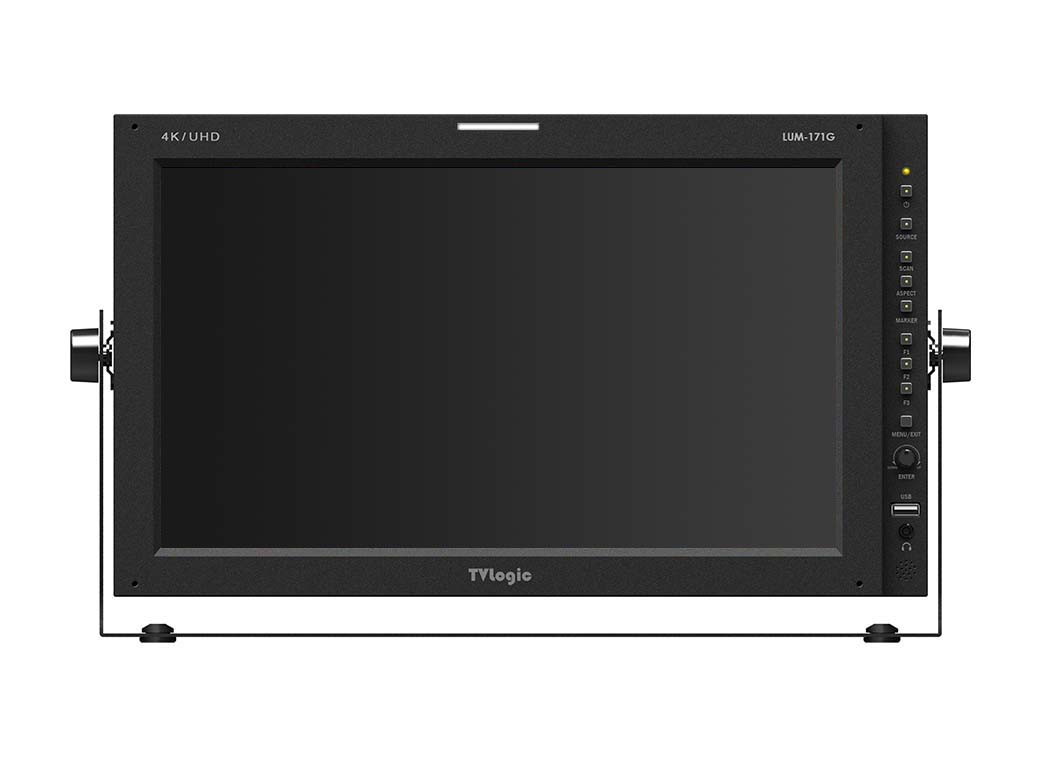

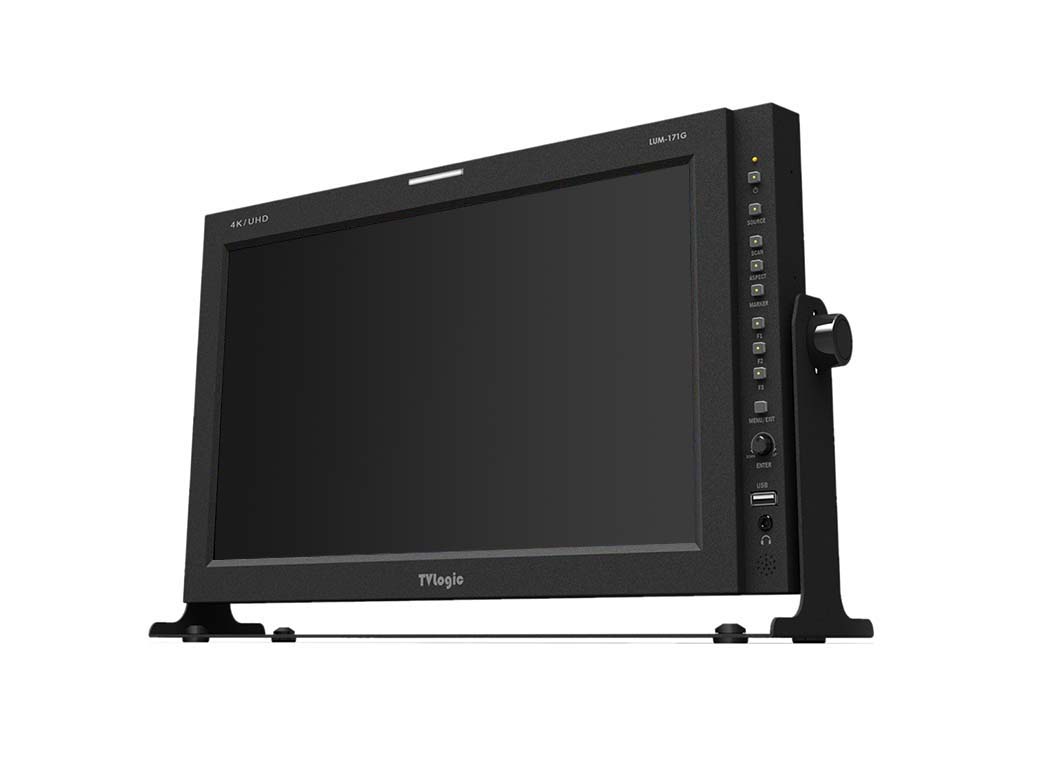

LUM-171G : 16.5” 4K Input-Ready Monitor

The new LUM-171G monitor supports 3G/6G/12G-SDI input - 2×3G-SDI & 2×12G-SDI. The LUM-171G combines a native 1920 x 1080 IPS LCD with SD/HD/UHD/4K input support for the most versatile monitoring and field production applications.

LUM-171G

LUM-171G LUM-171G LUM-171G

Choice:

LUM-171G

HDR Emulation

A true HDR monitor needs to employ a special display panel with high dynamic range and wide color gamut, then needs to be calibrated for PQ and HLG. For example LUM-310X (dual layer LCD system) and LUM-310R (LCD with a local dimming backlight system) can reproduce peak luminance of 1,000nit and 2,000nit respectively and contrast ratio of 1,000,000 : 1. They also cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Display Spec.

 Size  16.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.1905mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  1500:1
 Display Area  366(H) x 206(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input (HDMI 2.0)
Output
 4 X BNC  12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)
Input Signal
 3G SDI  2.974Gbps
 12G SDI  11.880Gbps
 HD SDI  1.489Gbps
 HDMI  480p / 720p / 1080p / 2160p
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54)
 SMPTE 296  720p (60/59.94/54)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF)
 SMPTE 260  47.95/48/50/59.94/60p)
Audio
 Audio In  Analog Stereo
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Marker,  Mono,  Time Code Display,  Waveform/Vector,  SingleMode,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount
Dimensions

LUM-171G_Dimension

Basic Accessory

AC Power Cord Stand-17 USB Cover

Optional Accessory

RMK-165 OPT-AND-165 OPT-AF-165 V-Mount-17C V-Mount-17 AB-Mount-17(AP)G-Mount-17(EMEA) Hood-175W(AP)Hood-175(EMEA) CC-175
  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet   Download
  Total Brochure   Download

[Release Notes]
Date : 19.08.23
[LUM-171G [CPU Firmware Update : V108 -> V109 / GPU Firmware Update : 0003 -> 0004 ]
1. Supporting CC 708/608 (ANC/L21)
2. Imporved when do Default Setting in HDMI
3. Adding D93

Date : 19.06.27
[LUM-171G [CPU Firmware Update : V107 -> V108]
1. Debugged Gamma error
2. Updated image blinking issue when input 6G signal
3. Updated Function Key Gamma movement
4. Debugged Bias error
5. Updated Function Key Luminance movement

Date : 18.11.08
[LUM-171G [CPU Firmware Update : V106 -> V107]
1. Debugged errors as in Gamma and SDI output

Date : 18.10.05
[LUM-171G [CPU Firmware Update : V105 -> V106, GPU Firmware Update : 0002 -> 0003]
1. Updated HDR Features (OSD menu setting).
2. Updated Camera LUT function.

Date : 17.12.
[LUM-171G [FPGA Firmware Update : V04 -> V05]
1. Added HDR feature.

Date : 16.12.20
[LUM-171G [FPGA Firmware Update : V04 -> V05]
1. Debugged Knob control problem.
2. Debugged abnormal color displaying when using the Camera LUT function.

Date : 16.10.24
[LUM-171G [FPGA Firmware Update : V01 -> V04]
1. Debugged screen noise on [UD Mode].
