LVM-328W : 32” FHD Multi Format Monitor

The LVM-328W is a 32-inch 1920x1080 resolution broadcast QC-grade monitor. A new white LED backlight unit improves power consumption, color purity, and contrast ratio. The LVM-328W has a new, thinner bezel width to improve edge-to-edge viewing and features 12-bit video processing and a multiple image-measurement tools.
LVM-328W

LVM-328W LVM-328W LVM-328W

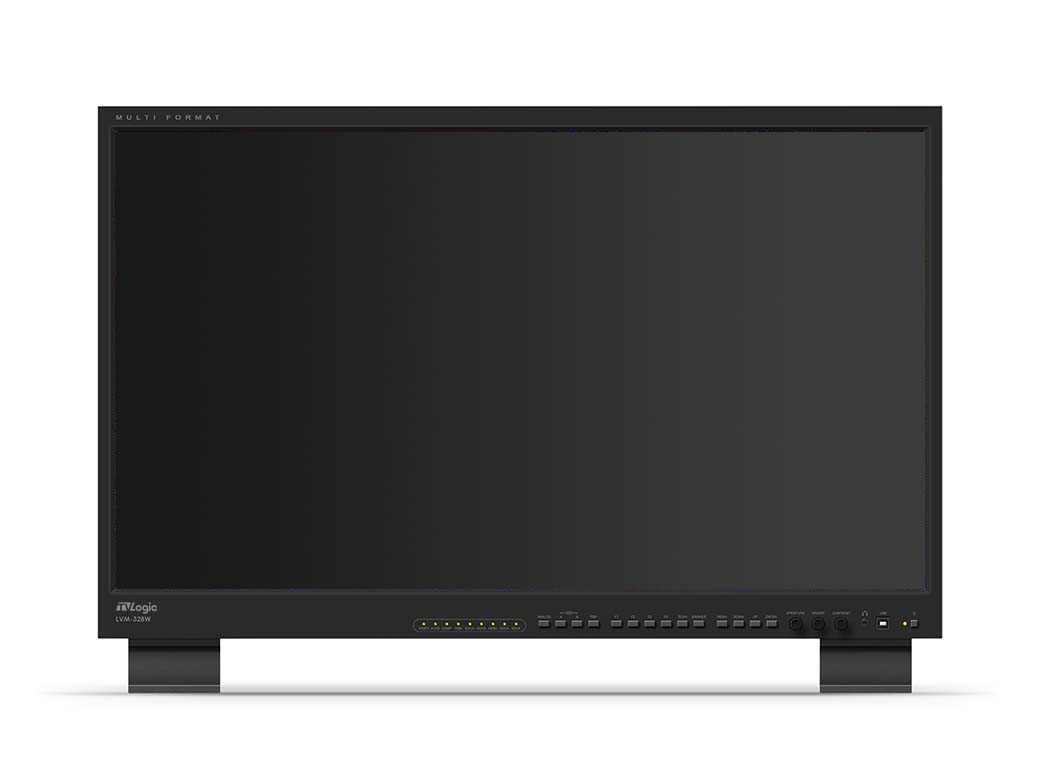

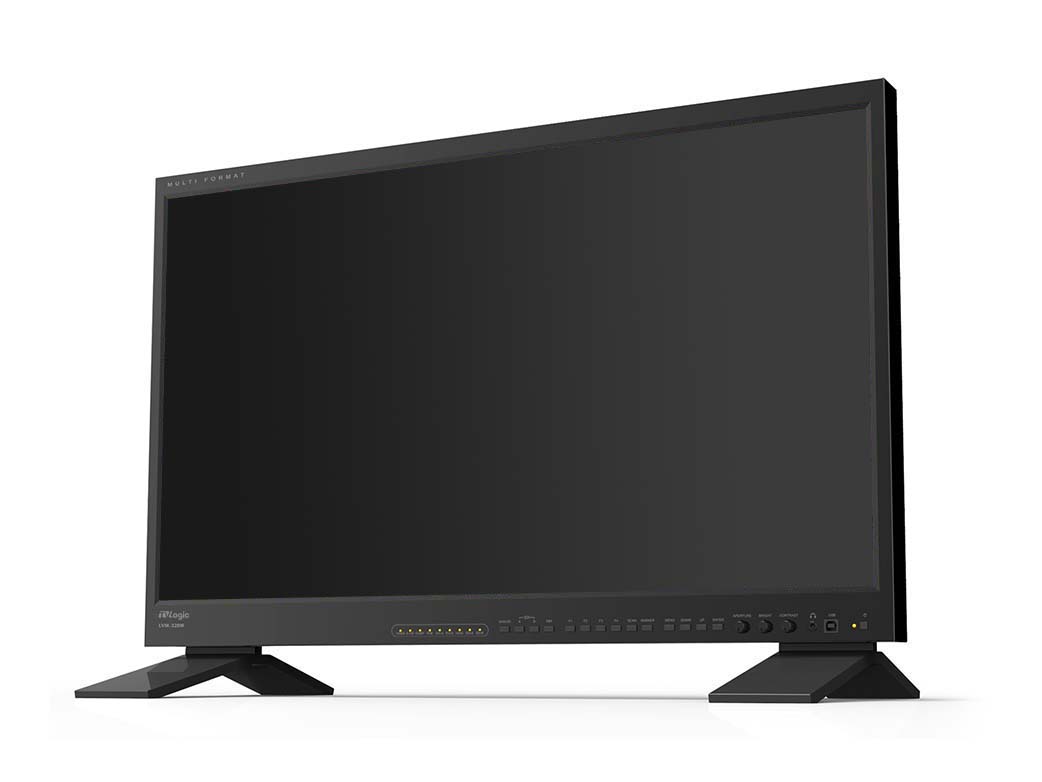

32” FHD Multi Format Monitor

The LVM-328W is a 32-inch 1920x1080 resolution broadcast QC-grade monitor.
A new white LED backlight unit improves power consumption, color purity, and contrast ratio.
The LVM-328W has a new, thinner bezel width to improve edge-to-edge viewing and features 12-bit video processing and a multiple image-measurement tools.





Main Body Dimensions
Main Body    733.4 x 464.1 x 84.7 (mm) / 28.87 x 18.27 x 3.33 (inch)
With Body    733.4 x 511.3 x 309.3 (mm) / 28.87 x 20.13 x 12.18 (inch)
Weight           13.8kg / 30.42Ibs



Product Highlights
•  32” Full HD Resolution (1920 x 1080)
•  Waveform / Vectorscope
•  16ch Audio Level Meter
•  Timecode Display
•  Blue/Mono Only
•  Luma(Y’) Zone Check
•  Various Scan Modes
•  Closed Caption (CC-608, CC-708, OP42/47)
•  Fast Mode
•  Focus Assist
•  Marker
•  H/V Delay
•  Range Error
•  User Aspect
•  Dynamic UMD

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector
Display Spec

 Size  31.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.364mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  400cd/m2
 Contrast Ratio  1200 : 1
 Display Area  698(H) x 393(V) mm
Input
 3 X BNC  Analog Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 3 X BNC  Analog Output
 2 X BNC  3G-SDI Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/160 0x1200
 DVI Analog  640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080
 DVI DP  640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080/1920x1200
 DVI DH  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  Blue Only,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support
Options
  Carrying Case,
Dimensions

LVM-328W

Basic Accessory

AC Power Cord ST-Stand

Optional Accessory

CC-32
